Automatic Stator Winding And Coil Inserting Machine Auto Tooling Coil Winding Machine Automatic Motor Coil Winding Machine
| Model Number | SMG-NR204 |
Product Details
Overview
Basic Properties
- Place of Origin
- Guangdong, China
- Brand Name
- SMG
- Condition
- New
- Weight (KG)
- 500
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- Ordinary Product
- Warranty of core components
- 1 Year
- Core Components
- Motor
- Warranty
- 1 Year
- Applicable Industries
- Other
- Showroom Location
- None
Other Properties
- Place of Origin
- Guangdong, China
- Condition
- New
- Weight (KG)
- 500
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- Ordinary Product
- Warranty of core components
- 1 Year
- Core Components
- Motor
- Warranty
- 1 Year
- Applicable Industries
- Other
- Showroom Location
- None
- Brand Name
- SMG
Supply Ability
- Supply Ability
- 10 Set/Sets per Month
Packaging & Delivery

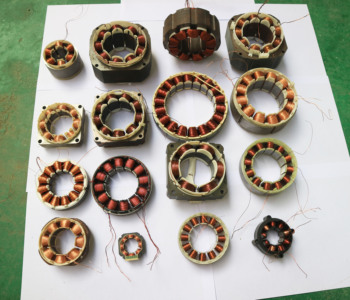

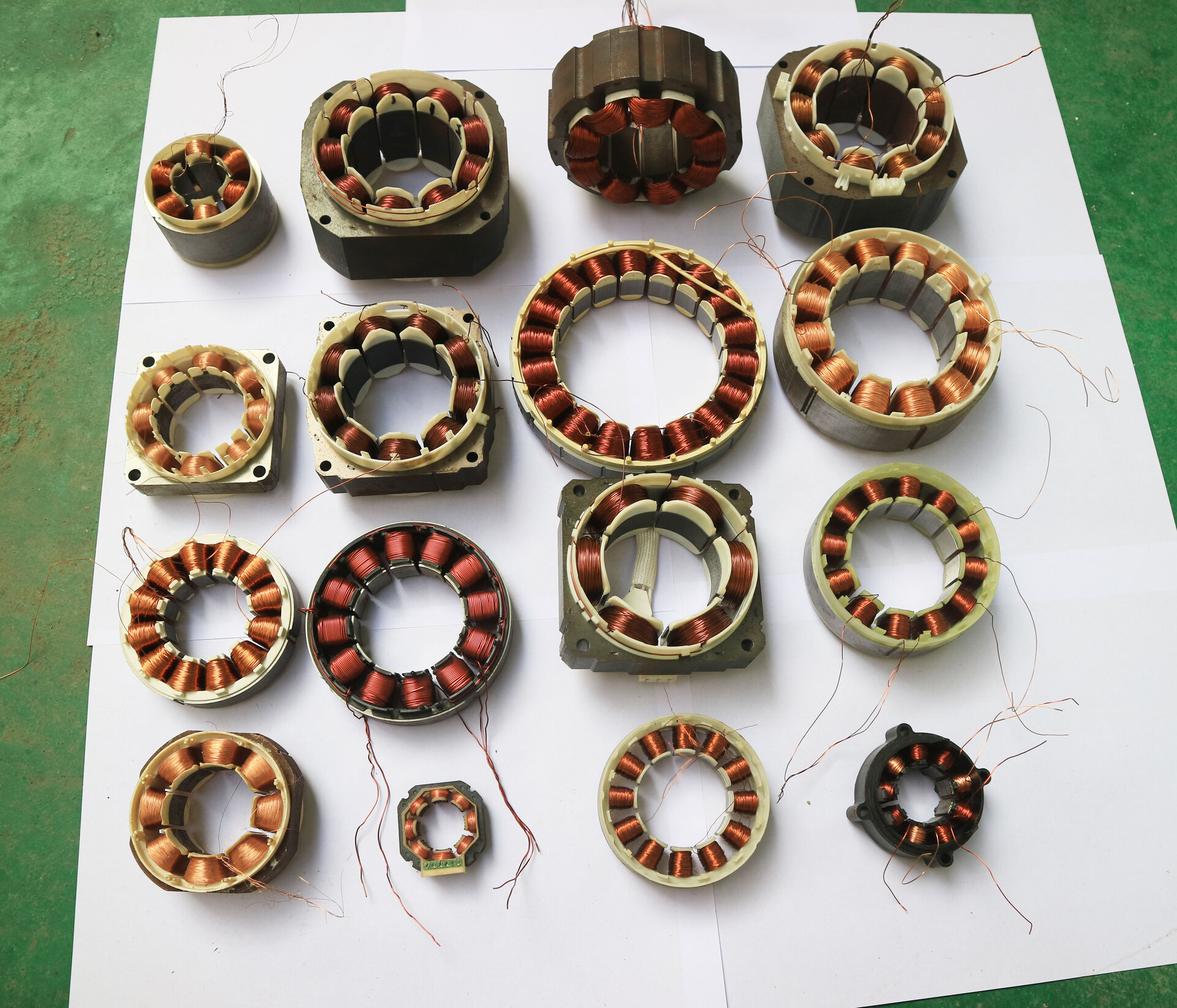

Product Range: Winding of various DC brushless motors such as servo motors, brushless motors, stepper motors, fan motors, bladeless fan motors, elevator door motors, new energy motors, etc.

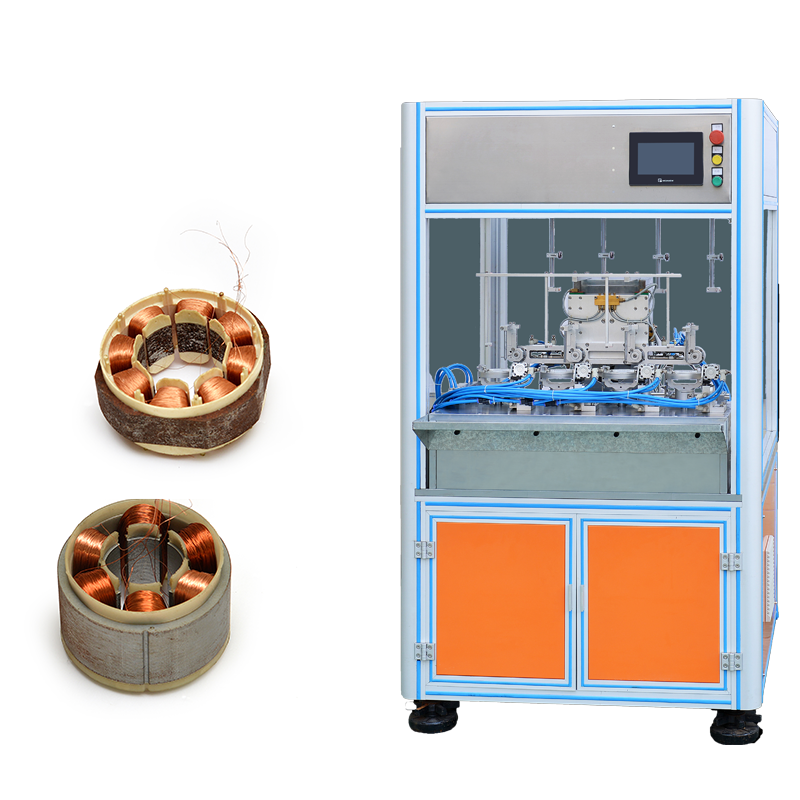

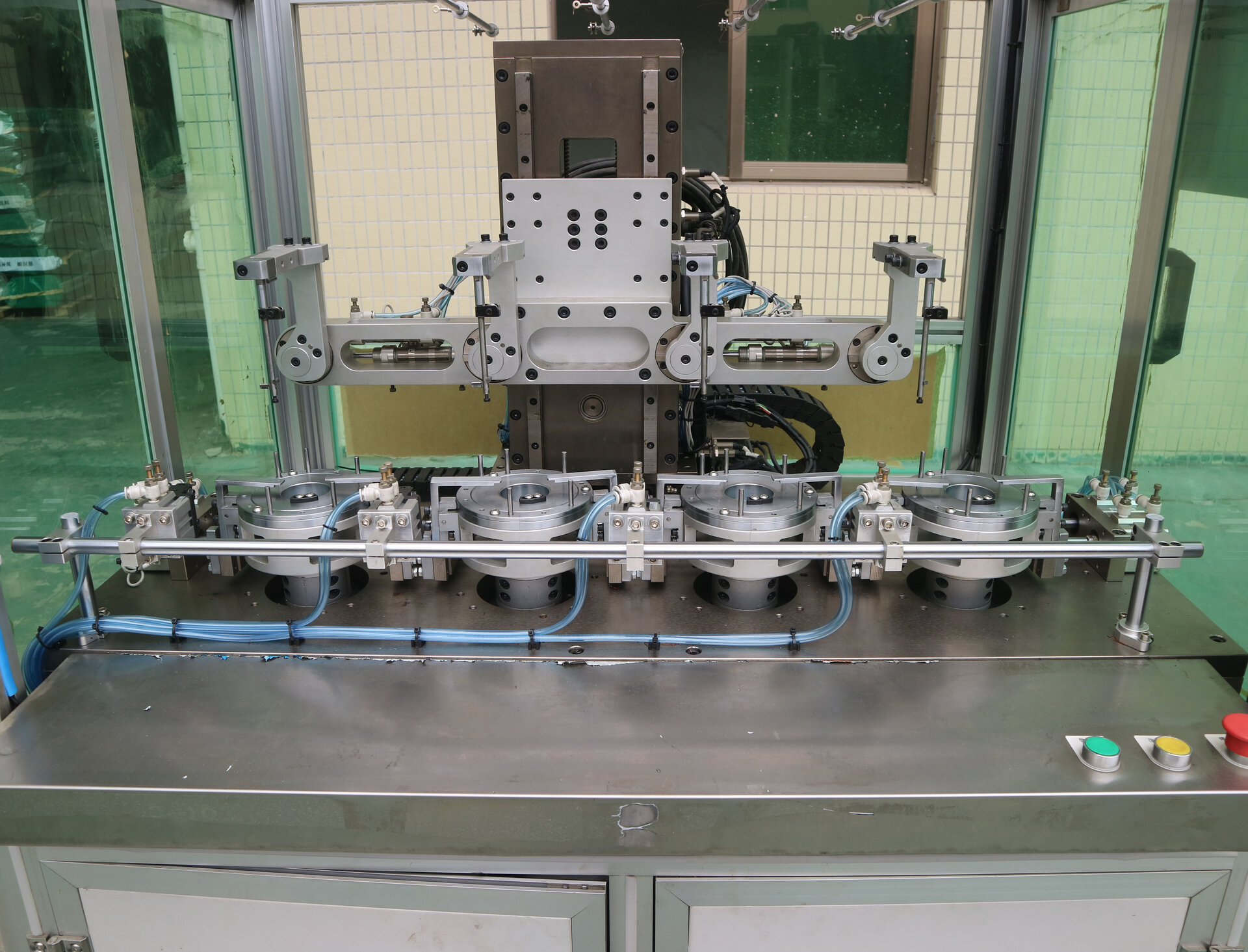

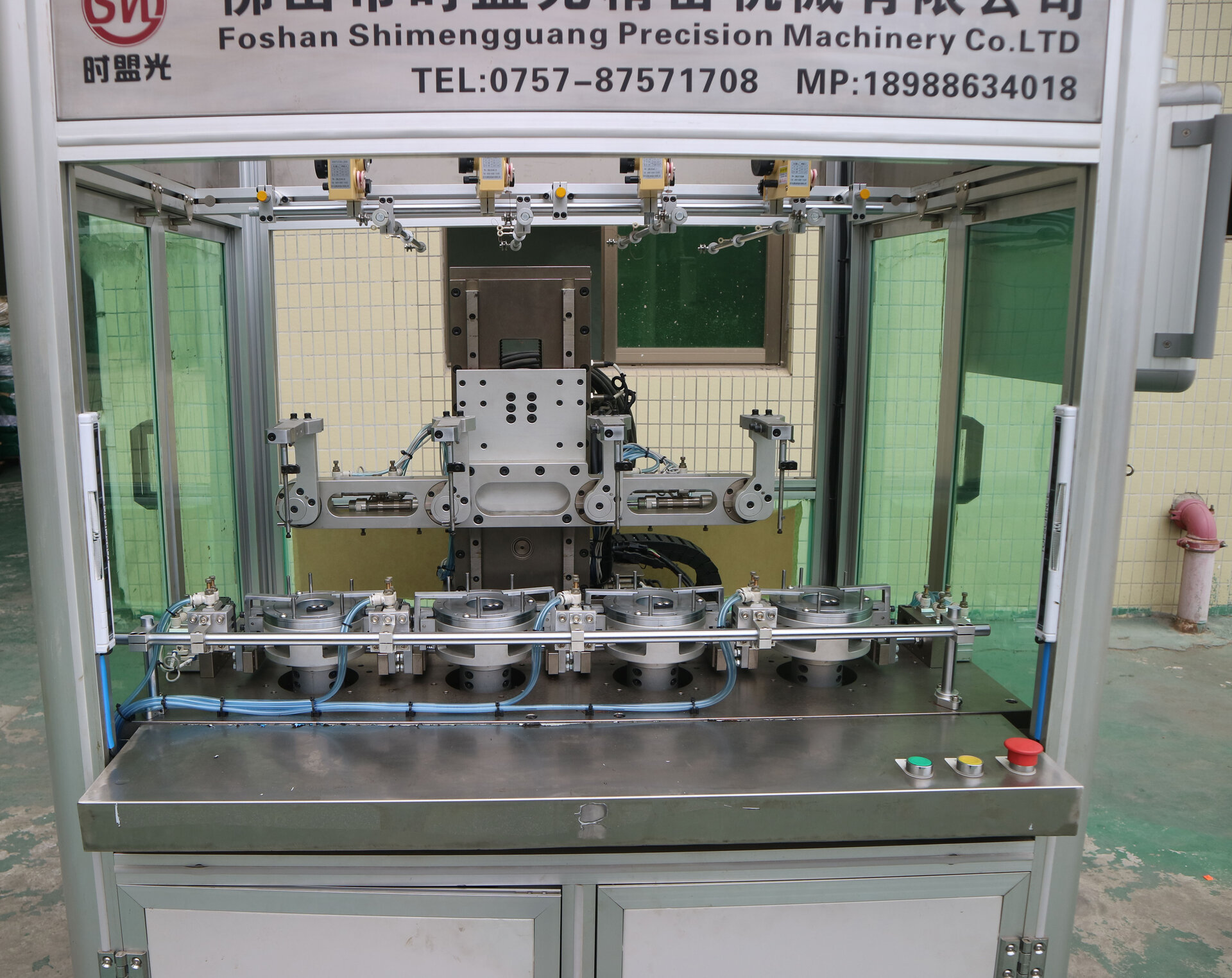

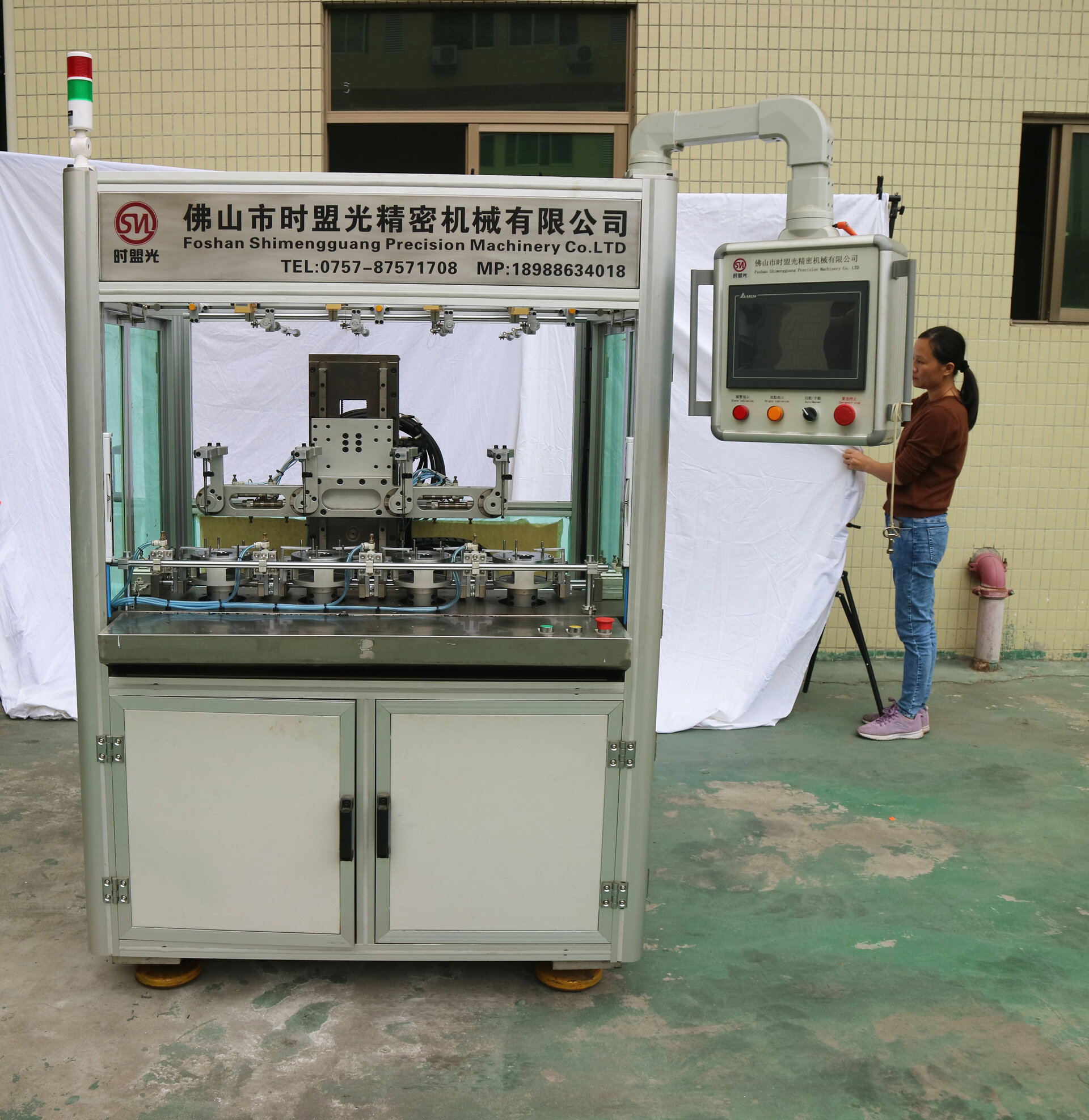

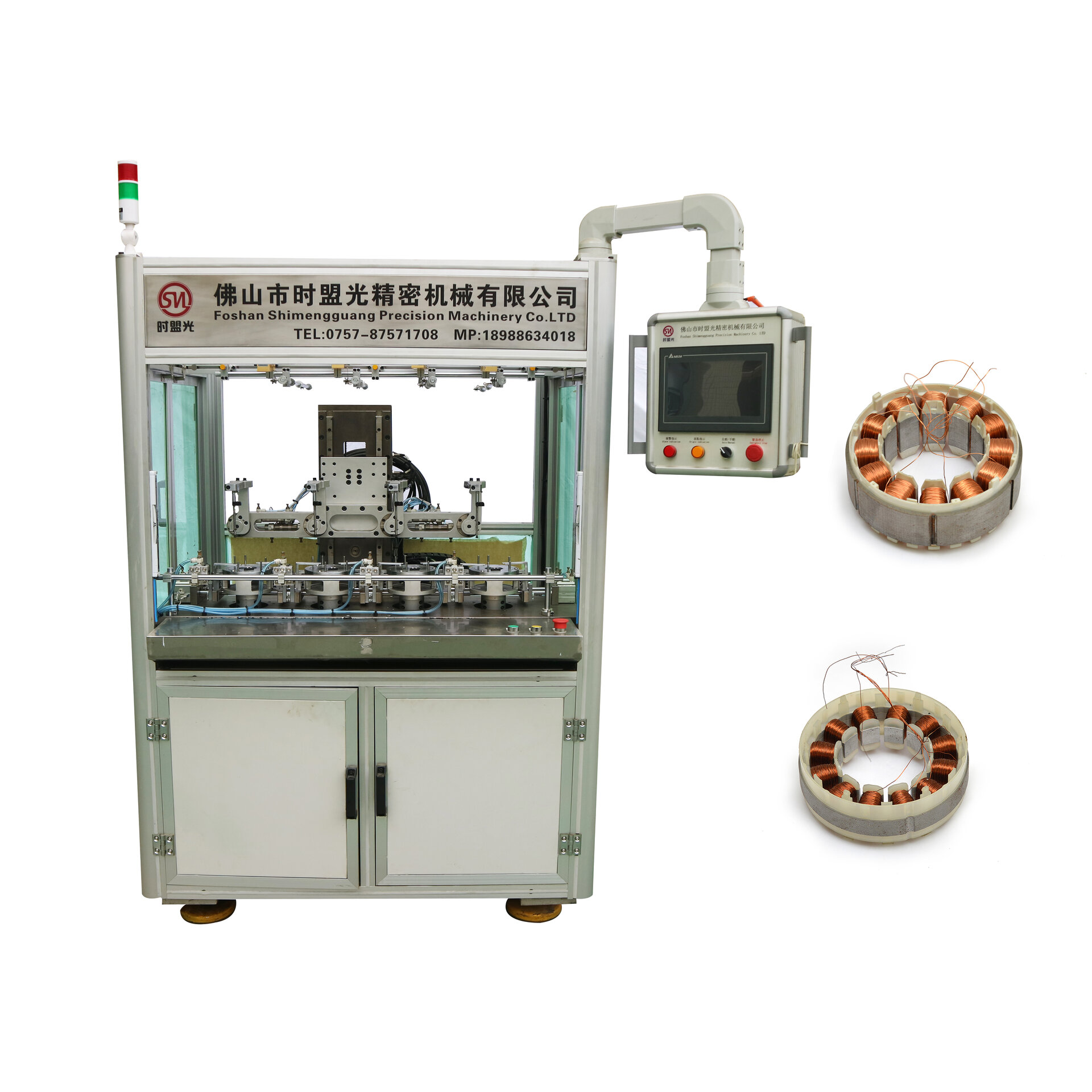

Machine Description: This stator winding machine comes in two models: 4-station and 6-station; The use of cam transmission greatly improves the operating speed and allows for control and processing of the winding processPerform 6-axis or 9-axis synchronous and orderly winding, and achieve special processes with high winding requirements; The machine adopts servo precise positioning and automatically winds the thread head and threadTail, automatic winding, automatic wire arrangement, automatic indexing, automatic clamping, etc. It is the optimal cost-effective model for single-phase stators with multiple turns
Suitable wire diameter | Ф0.08-Ф1.5mm |
Number of workstations | 4 (6 workstations) Single nozzle co winding |
Inner diameter of stator | ≥ Ф15mm |
Outer diameter of stator | ≤ Ф140mm |
Stator stack thicknes | 5-40mm |
Number of stator slots | any slot |
Transmission servo | 7 or 10 sets |
Air pressure | 4-7kg/cm² |
Power supply | 3-phase 380V 50Hz |
