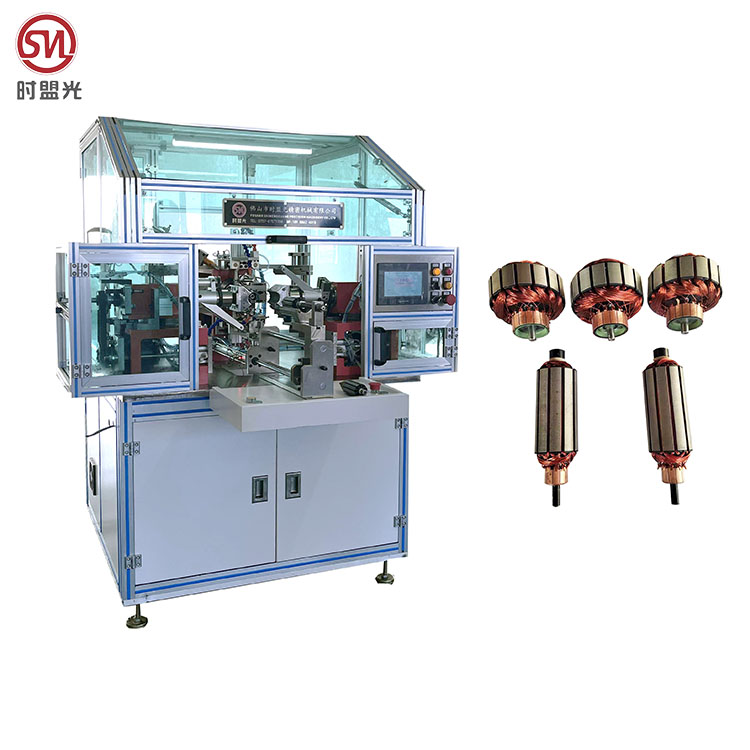

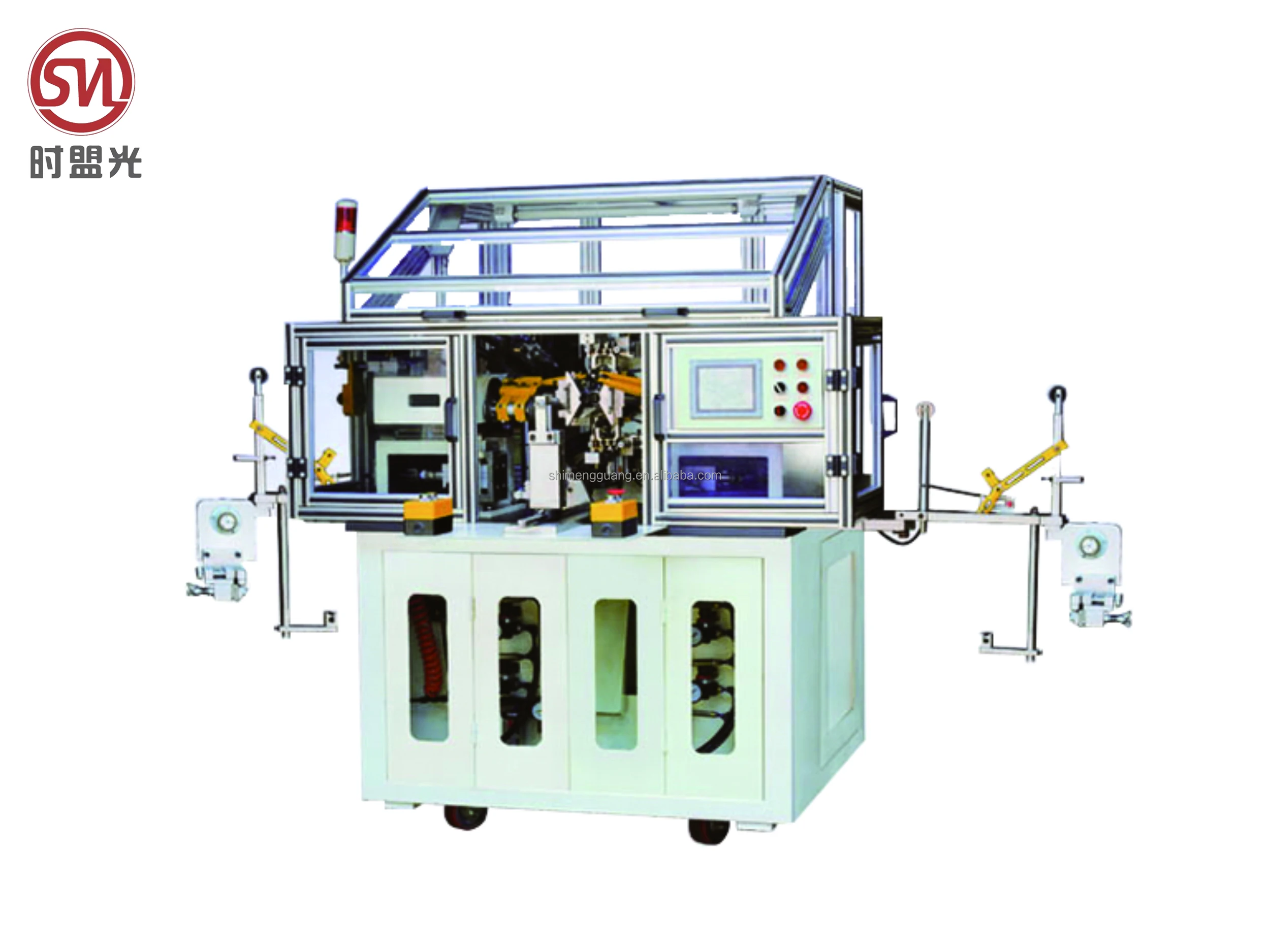

Armature Winding Machine
Model:SMG-AW500

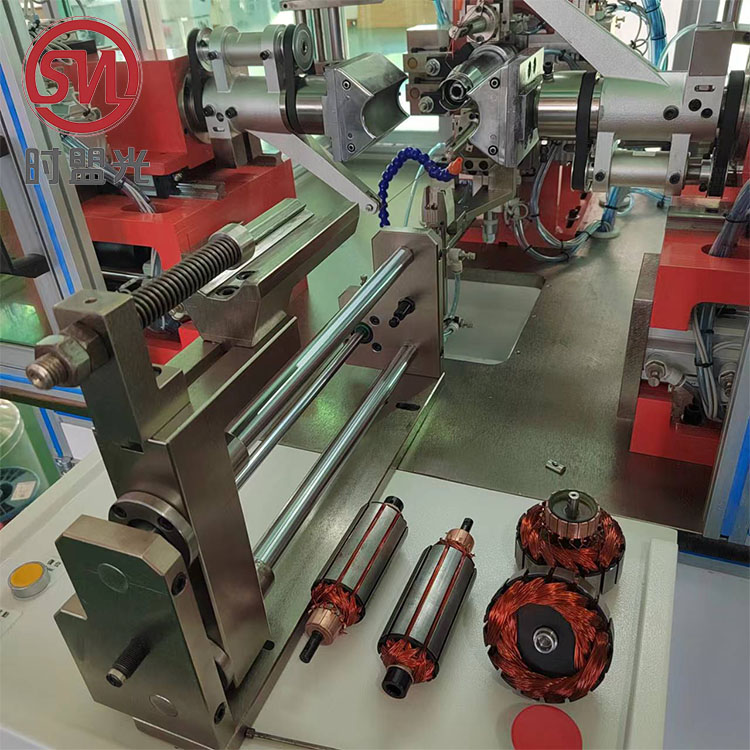

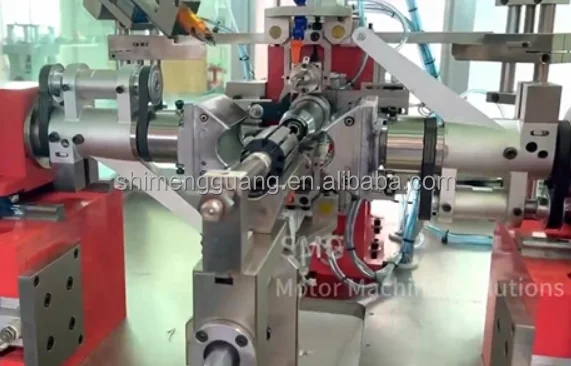

Manually pre position the rotor onto the initial positioning fixture → start the equipment → feed the rotor → clamp the rotor and exit the initial positioning → automatically index to the hook position for hanging the first hook→ index to the break line head position for pulling the break line head → index to the first slot for winding → complete one slot winding → index the second hook hook hook of the rotor → index to the second slot for winding →repeat the above actions to complete the winding hooks for each slot (according to the number of slots set by the program) → after completion, break the tail of the line, Release the clamp → Next rotor winding.
