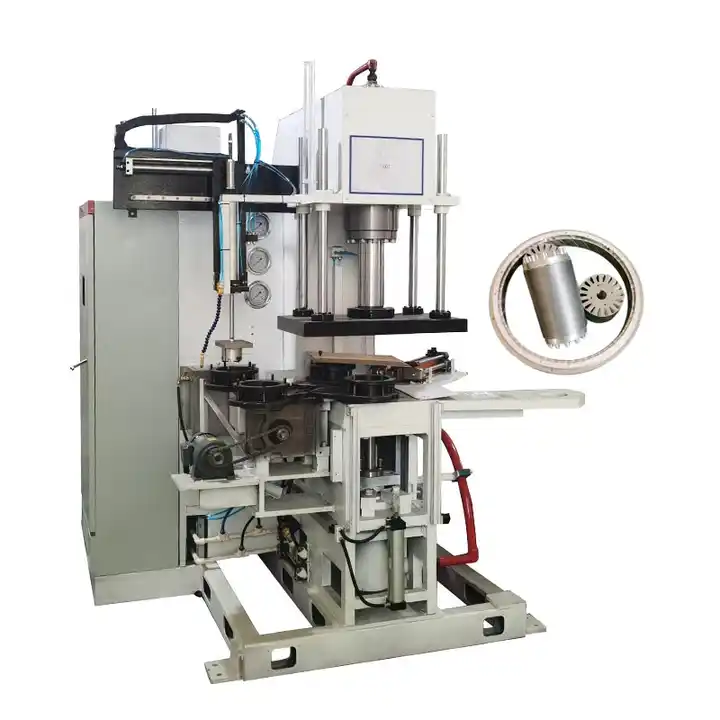

Rotor Automatic Die Casting Machine Automatic Aluminum Die Casting Machine Automatic Rotor Die Casting Machine
| Model Number | SMG-ZL101 |
| customization | Customized logo Customized packaging Graphic customization |
Product Details
Overview
Basic Properties
- Place of Origin
- Guangdong, China
- Condition
- New
- Machine Type
- Cold Chamber Die Casting Machine
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Core Components
- PLC, Engine, Gearbox, Motor, Gear, Pump
- Brand Name
- SMG
- Voltage
- 380V
- Power
- 3.75KW, 380V 50/60Hz 3.75KW
- Dimension(L*W*H)
- 970x920x2300mm
- Warranty
- 1 Year
- Key Selling Points
- Fully Automatic
- Showroom Location
- None
- Applicable Industries
- Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Other
- Weight (KG)
- 2500
- Hydraulic motor power
- 7.5kw
- Oil tank capacity
- 350L
- Rotor stack length
- ≤100mm
- Rotor OD
- ≤100mm
- Pitch time
- ≤18~24s
- Change-over time
- 20mins
- Upper Presser operation pressure
- 40T
- Bottom presser operation pressure
- 15T
- Working pressure of oil cylinder
- ≤21Mpa
Other Properties
- Place of Origin
- Guangdong, China
- Machine Type
- Cold Chamber Die Casting Machine
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Core Components
- PLC, Engine, Gearbox, Motor, Gear, Pump
- Warranty
- 1 Year
- Key Selling Points
- Fully Automatic
- Showroom Location
- None
- Applicable Industries
- Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Other
- Weight (KG)
- 2500
- Condition
- New
- Brand Name
- SMG
- Voltage
- 380V
- Power
- 3.75KW
- Dimension(L*W*H)
- 970x920x2300mm
- Hydraulic motor power
- 7.5kw
- Oil tank capacity
- 350L
- Rotor stack length
- ≤100mm
- Rotor OD
- ≤100mm
- Pitch time
- ≤18~24s
- Change-over time
- 20mins
- Upper Presser operation pressure
- 40T
- Bottom presser operation pressure
- 15T
- Working pressure of oil cylinder
- ≤21Mpa
- Power
- 380V 50/60Hz 3.75KW
Supply Ability
- Supply Ability
- 10 Set/Sets per Month
Packaging & Delivery
Video Description
Products Description

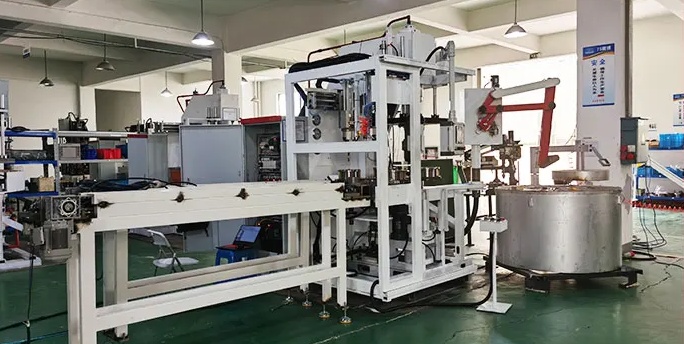

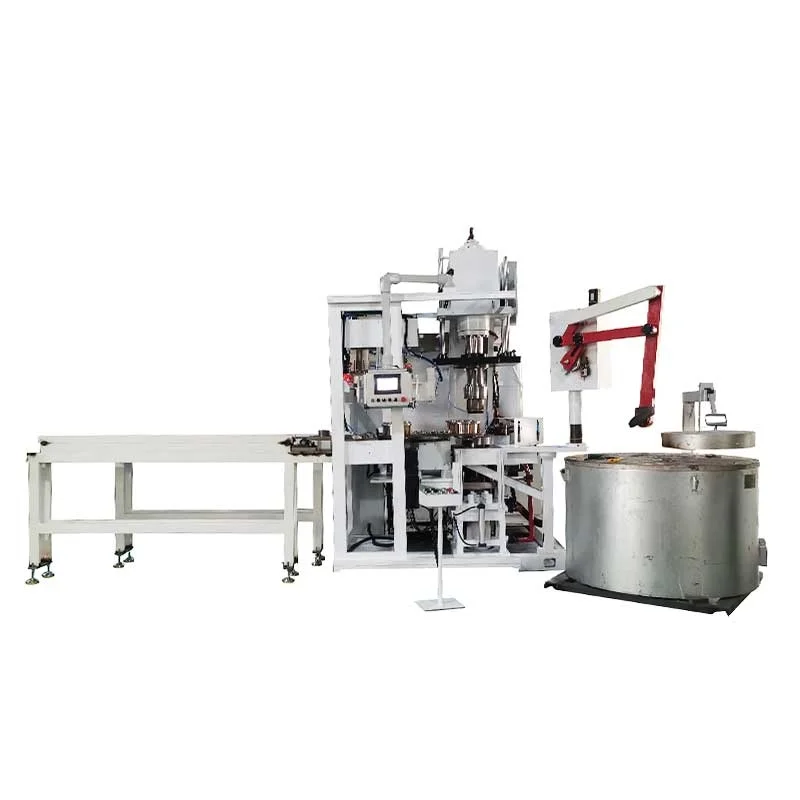

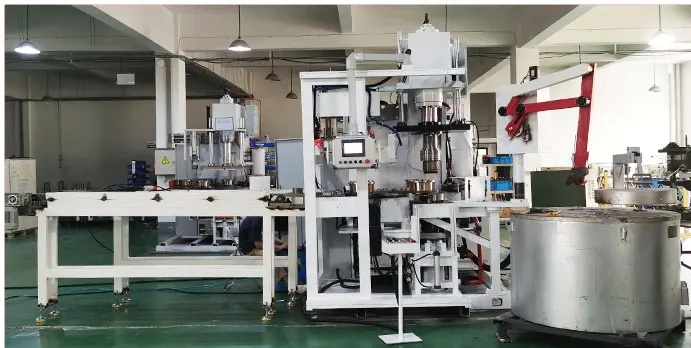

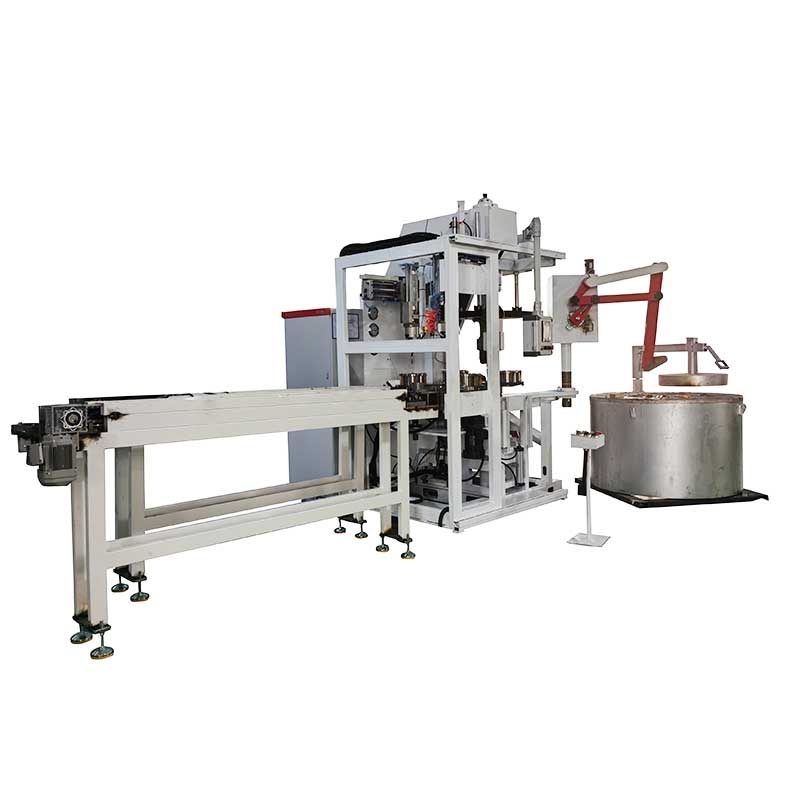

Fully Automatic Rotor Aluminum Die Casting Machine
Main Functions
•Automatic aluminum melt extraction
•Automatic loading and unloading rotor
Automatic cutting of scrap
Characteristic
• Rotor loading: automatic pneumatic cycle pickup.
• Aluminum melt: servo motor controls the robot arm and controls the liquid quantity through the human-machine interface.

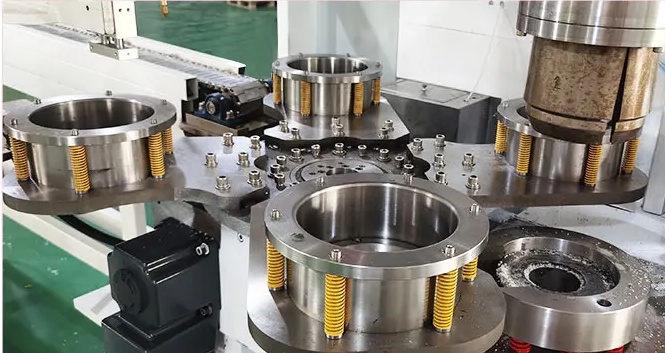

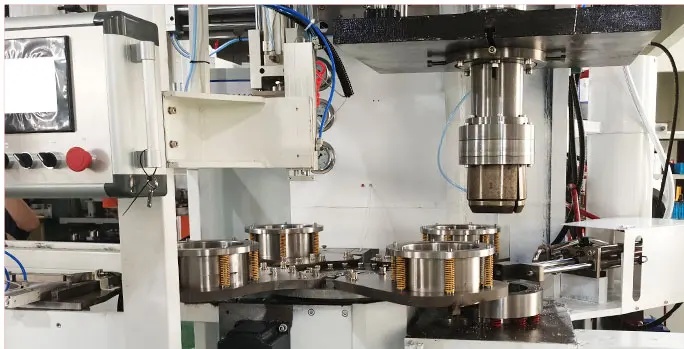

Product Details
Technical Parameter
Max Mold Closing Stroke | 150mm |
Pressing Injection Stroke | 50mm |
Hydraulic System Working Pressure | 10~25Mpa |
Hydraulic Motor Power | 7.5KW |
Oil Tank Capacity | 350L |
Working Pressure of Oil Cylinder | ≤21Mpa |
Power | 380V 50/60Hz 3.75KW |
Company Profile
Foshan Shimengguang Precision Machinery Co., Ltd. is a professional motor equipment manufacturer dedicated to research and development, design, manufacturing. saies, and service. Our main products include brushless motors, servo motors, stepper motors, variable frequency motors, blower brushless motors, water pump motors, inner wound stator motors, outer wound stator motors, induction motors, series excitation motors, new energy motors, and various types of micro motor production and manufacturing equipment.
Main Products

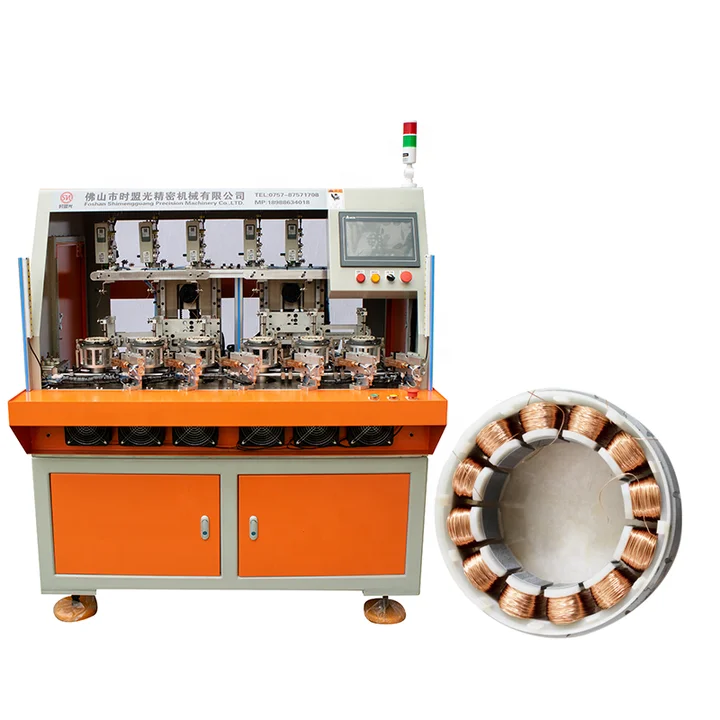

3 Needle Brushless Stator Winding Machine

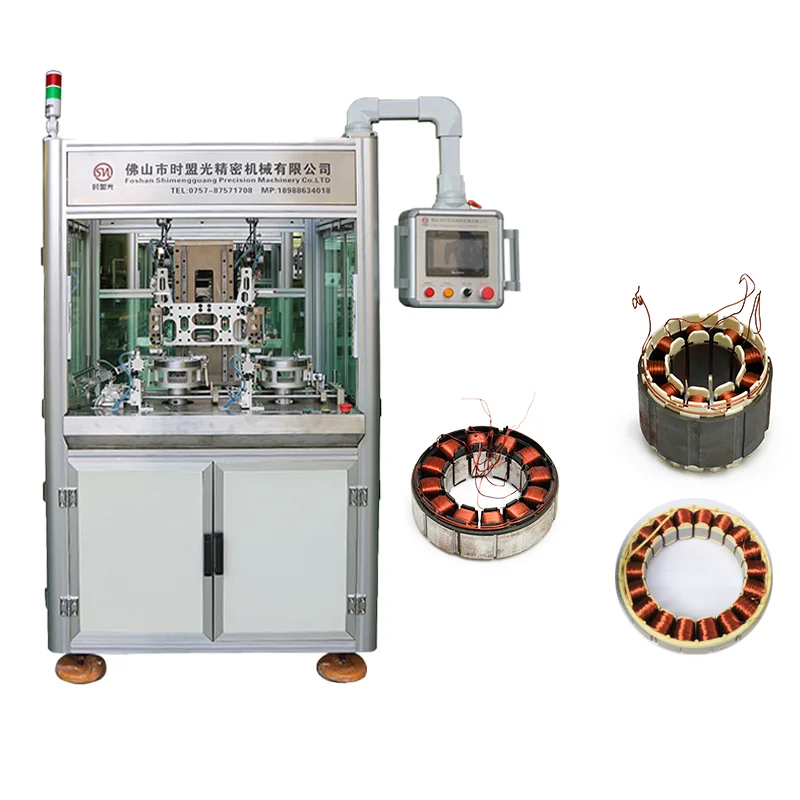

Two Station Stator Inner Winding Machine
