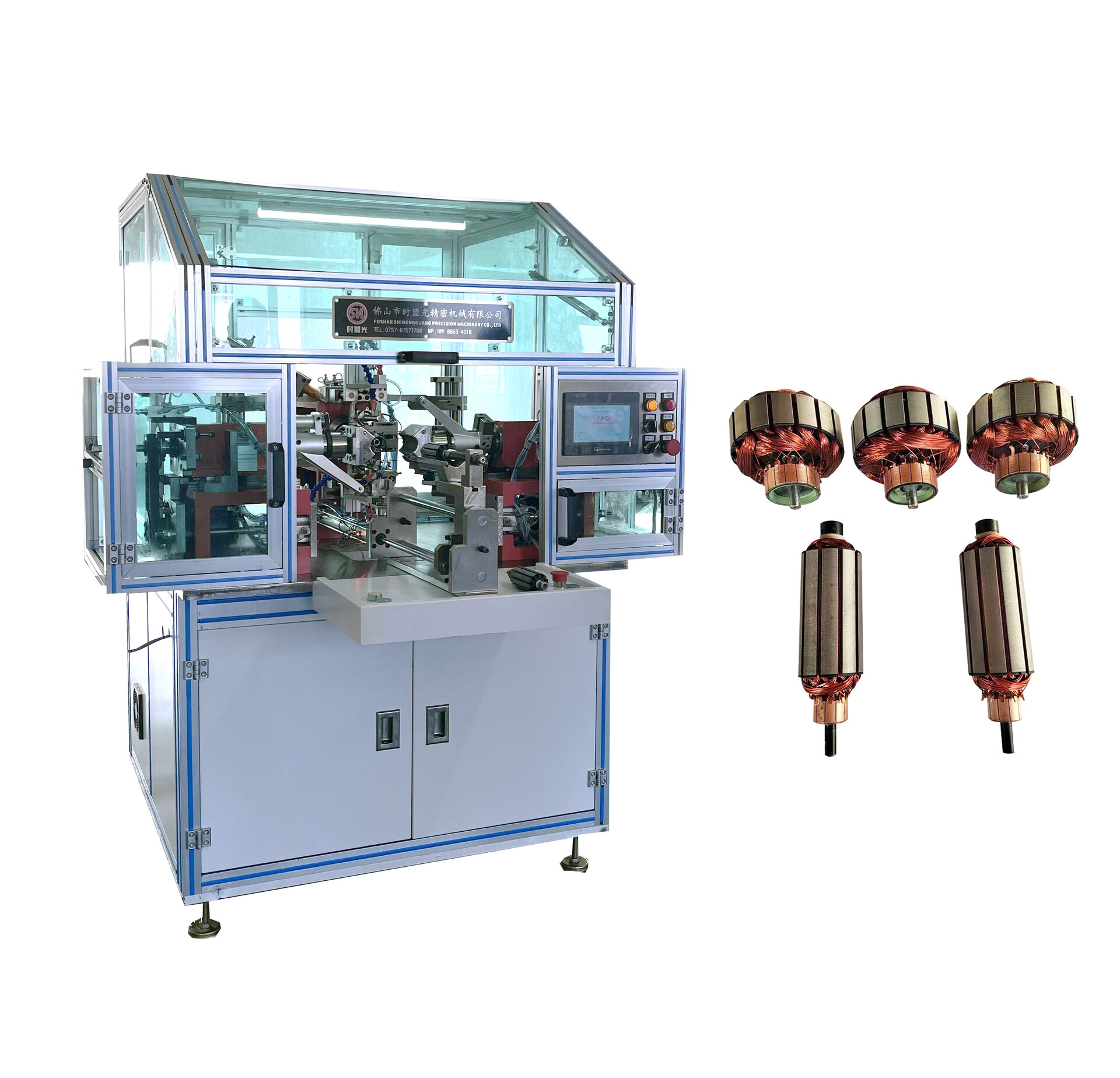

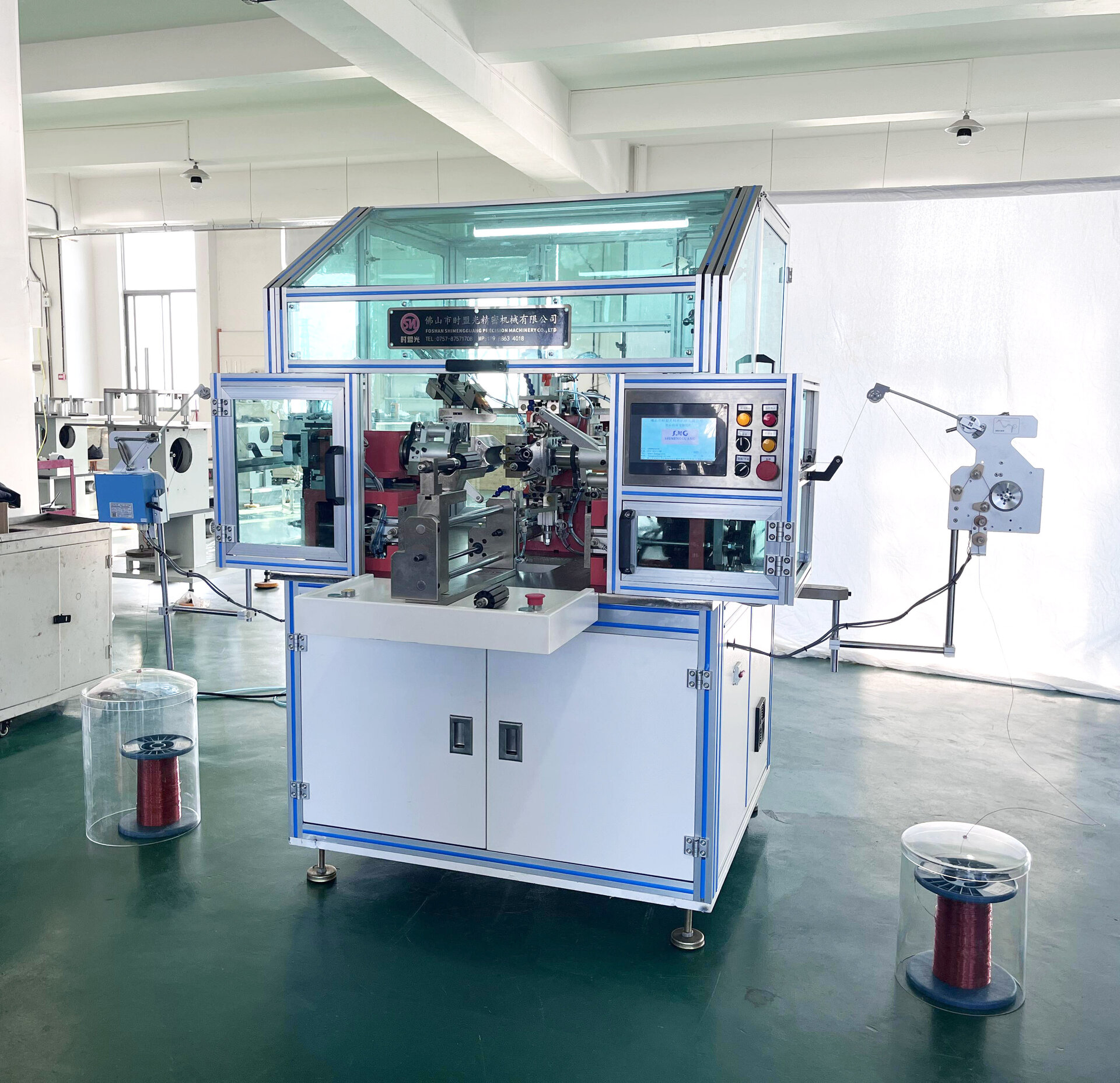

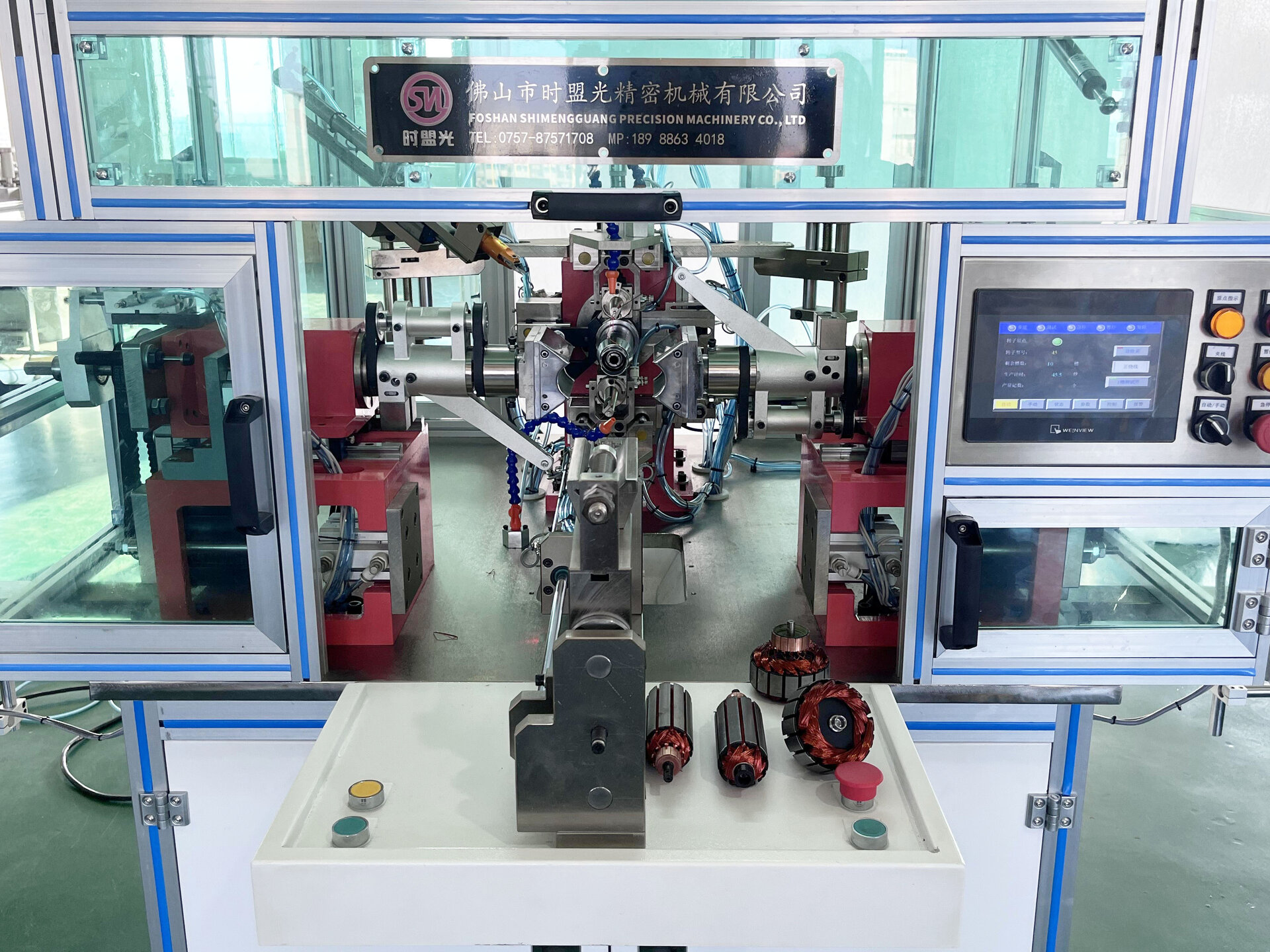

SMG Electric motor automatic coil winding machine motor rotor winding equipment
| Model Number | SMG-GY004 |
Product Details
Overview
Basic Properties
- Condition
- New
- Max. Load (KG)
- 100 KG
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- Ordinary Product
- Warranty of core components
- 1 Year
- Core Components
- Motor
- Length of Axis (mm)
- 1 mm
- Center Height (mm)
- 1 mm
- Max.Transformer Capacity(kVA)
- 1 kVA
- Place of Origin
- Guangdong, China
- Brand Name
- SMG
- CNC or Not
- CNC
- Weight (KG)
- 500
- Wire Diameter Range (mm)
- 0.1 - 1 mm
- Warranty
- 1 Year
- Key Selling Points
- Automatic
- Applicable Industries
- Machinery Repair Shops, Manufacturing Plant
- Showroom Location
- None
Other Properties
- Condition
- New
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- Ordinary Product
- Warranty of core components
- 1 Year
- Core Components
- Motor
- Place of Origin
- Guangdong, China
- CNC or Not
- CNC
- Weight (KG)
- 500
- Warranty
- 1 Year
- Key Selling Points
- Automatic
- Applicable Industries
- Machinery Repair Shops, Manufacturing Plant
- Showroom Location
- None
- Max. Load (KG)
- 100 KG
- Length of Axis (mm)
- 1 mm
- Center Height (mm)
- 1 mm
- Max.Transformer Capacity(kVA)
- 1 kVA
- Brand Name
- SMG
- Wire Diameter Range (mm)
- 0.1 - 1 mm
Supply Ability
- Supply Ability
- 10 Set/Sets per Month
Packaging & Delivery
- Port
- Guangzhou
Video Description
Product Range:

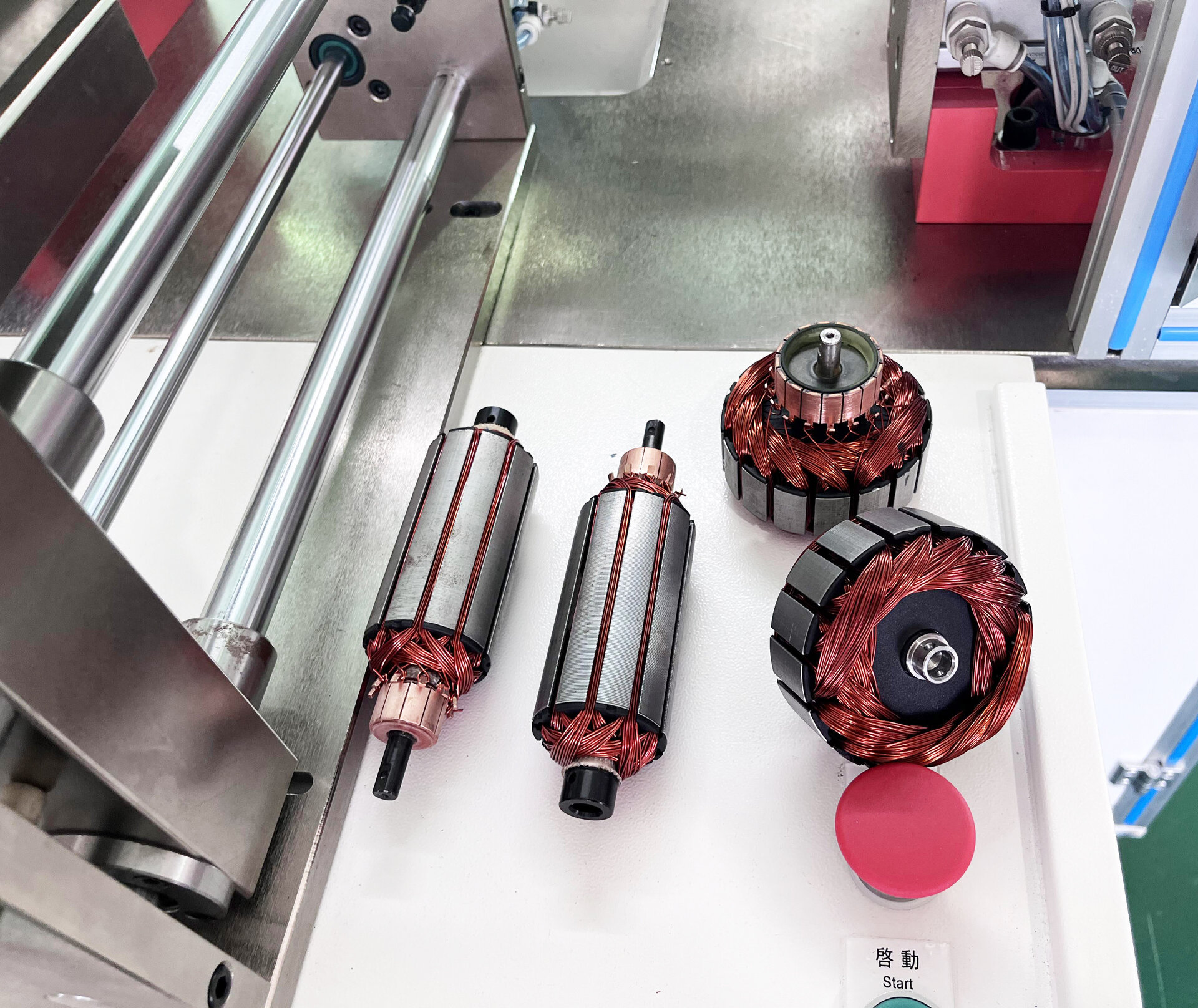

The winding of the rotor of brush motors such as electric tools and fans.
Machine Description:

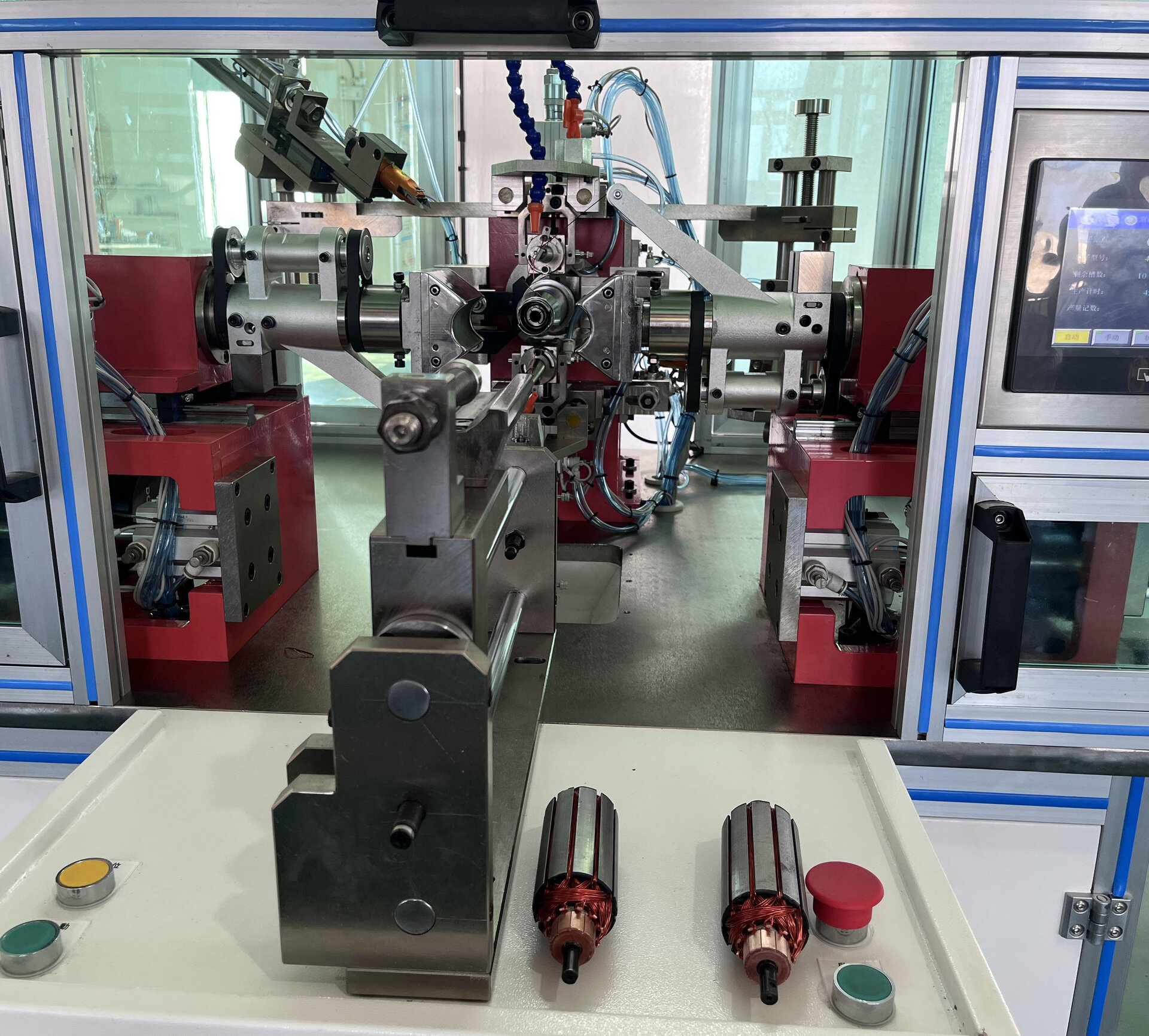

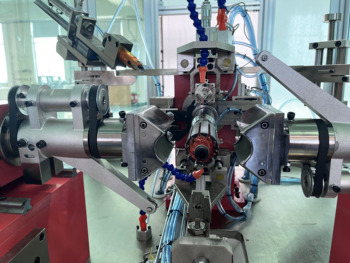

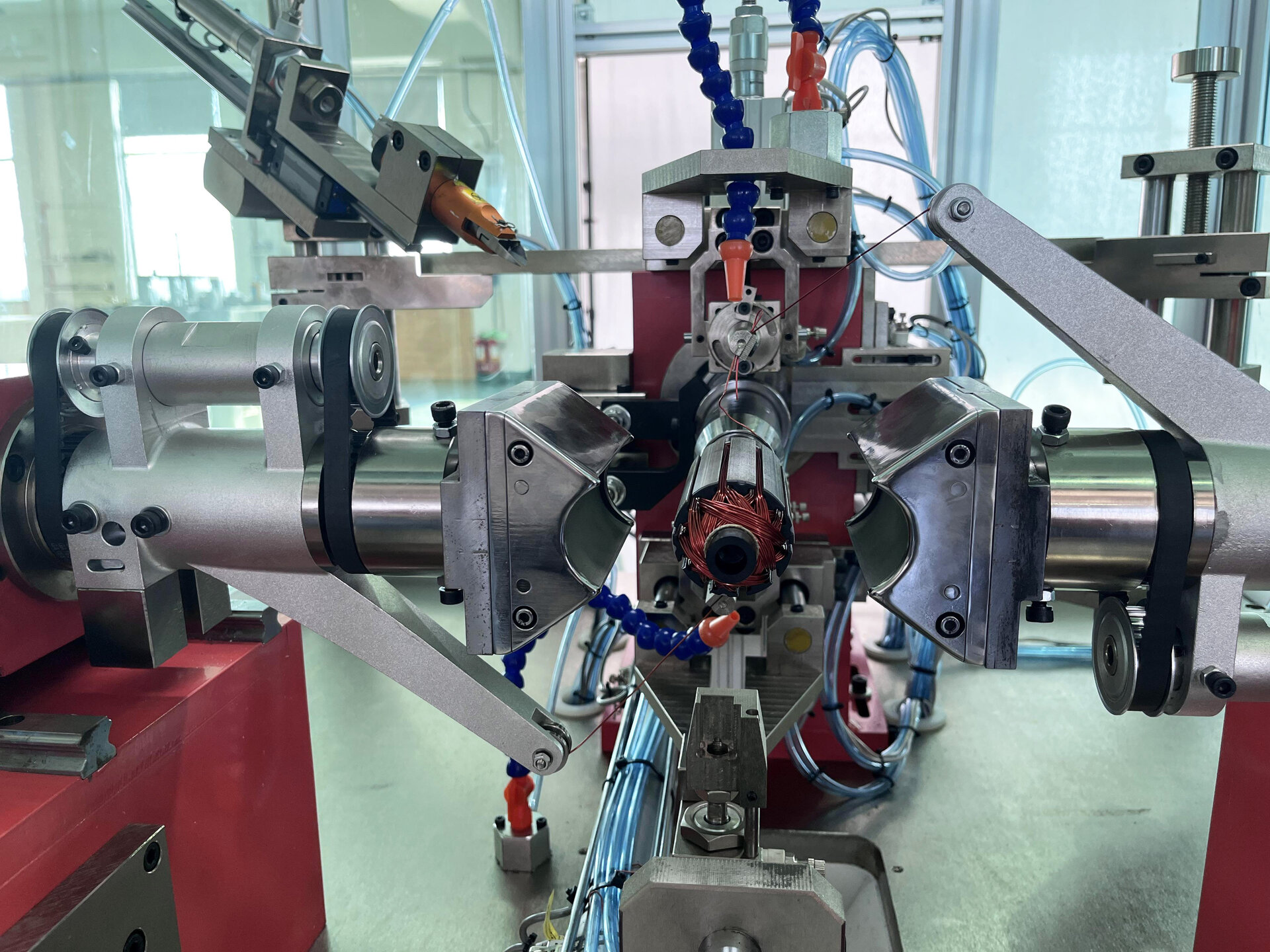

This model adopts an AC servo system and pneumatic components to control winding and slot rotation; Quick action startup, high accuracy, and good mute effect; Realize single hook, single slot double hook, double layer winding, and winding with different turns.
Suitable wire diameter | Ф 0.1- Ф 1.0mm |
Rotor shaft length | ≤ 280mm |
Outer diameter of rotor | ≤ 60mm |
Stator stacking thickness | ≤ 80mm |
Air pressure | 4-7kg/cm ² |
Power supply | 3-phase 380V 50Hz |
