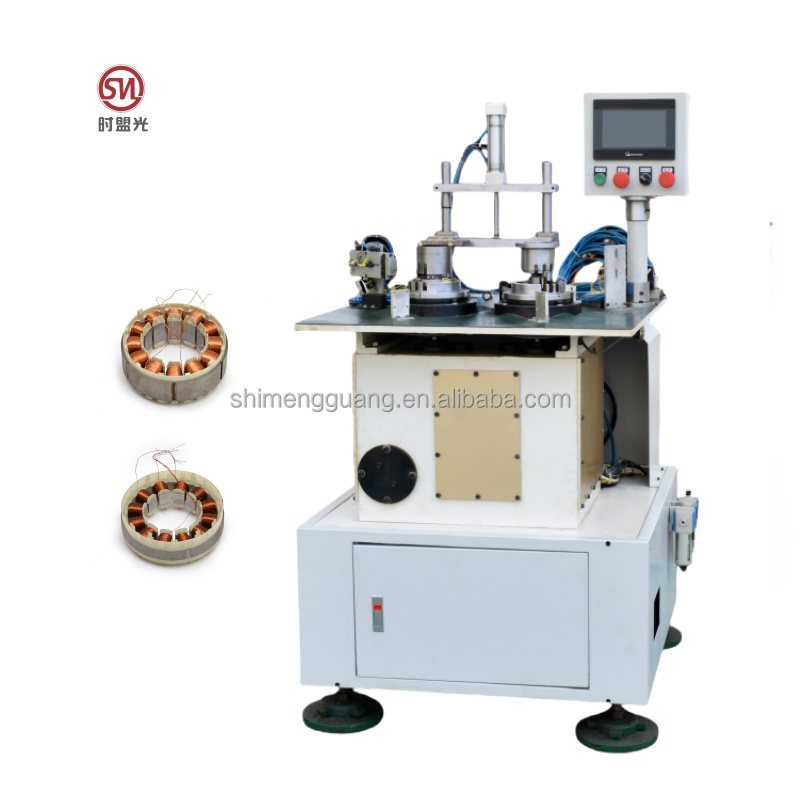

SMG Servo motor Brushless motor 2 station stator winding machine electrical equipment manufacturing machinery
| Model Number | SMG-WS102 |
| customization | Customized logo Customized packaging |
Product Details
Overview
Basic Properties
- Condition
-
New
- Max. Load (KG)
-
10 KG
- Video outgoing-inspection
-
Provided
- Machinery Test Report
-
Provided
- Marketing Type
-
Ordinary Product
- Warranty of core components
-
1 Year
- Core Components
-
PLC, Bearing, Motor, Gear
- Length of Axis (mm)
-
1 mm
- Center Height (mm)
-
2 mm
- Max.Transformer Capacity(kVA)
-
5 kVA
- Place of Origin
-
Guangdong, China
- Brand Name
-
SMG
- CNC or Not
-
CNC
- Motor Power (kw)
-
4.5
- Weight (KG)
-
500
- Dimension(L*W*H)
-
1450*1000*2000mm
- Wire Diameter Range (mm)
-
0.08 - 0.86 mm
- Warranty
-
5 years
- Key Selling Points
-
High Productivity
- Applicable Industries
-
Manufacturing Plant
- Showroom Location
-
None
- Product name
-
Automatic Toroid Winding Machine
- After-sales Service Provided
-
Online Support
- Application
-
Winding Coil
- Function
-
Coil Winding Coil Winding Tool
- Name
-
Toroidal Taping Machine
- Keyword
-
Automatic Motor Wire Winding Machine
- Used for
-
Ring Inductor Coil
- After Warranty Service
-
Service
- Winding machine Type
-
Bobbin Winding Machine
Other Properties
- Condition
-
New
- Video outgoing-inspection
-
Provided
- Machinery Test Report
-
Provided
- Marketing Type
-
Ordinary Product
- Warranty of core components
-
1 Year
- Core Components
-
PLC, Bearing, Motor, Gear
- Place of Origin
-
Guangdong, China
- CNC or Not
-
CNC
- Weight (KG)
-
500
- Warranty
-
5 years
- Key Selling Points
-
High Productivity
- Applicable Industries
-
Manufacturing Plant
- Showroom Location
-
None
- Max. Load (KG)
-
10 KG
- Length of Axis (mm)
-
1 mm
- Center Height (mm)
-
2 mm
- Max.Transformer Capacity(kVA)
-
5 kVA
- Brand Name
-
SMG
- Motor Power (kw)
-
4.5
- Dimension(L*W*H)
-
1450*1000*2000mm
- Wire Diameter Range (mm)
-
0.08 - 0.86 mm
- Product name
-
Automatic Toroid Winding Machine
- After-sales Service Provided
-
Online Support
- Application
-
Winding Coil
- Function
-
Coil Winding Coil Winding Tool
- Name
-
Toroidal Taping Machine
- Keyword
-
Automatic Motor Wire Winding Machine
- Used for
-
Ring Inductor Coil
- After Warranty Service
-
Service
- Winding machine Type
-
Bobbin Winding Machine
Packaging & Delivery
Video Description
|
Suitable wire diameter
|
Ф 0.08- Ф 0.86mm
|
|

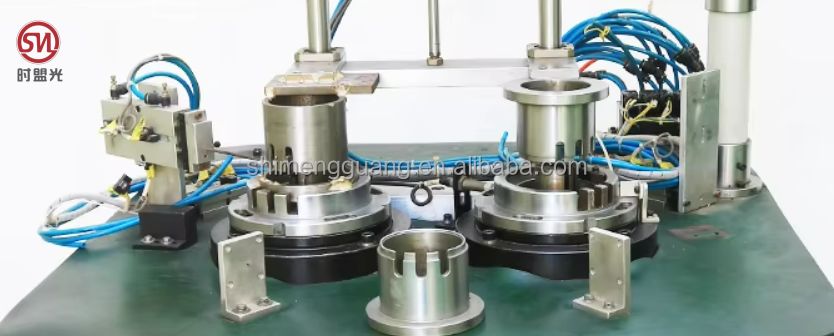

Number of working positions
|
2-position single nozzle or 3-nozzle co winding
|
|
Inner diameter of stator
|
≥ Ф 25mm
|
|
Outer diameter of stator
|
≤ Ф 120mm
|
|
Stator stack thickness
|

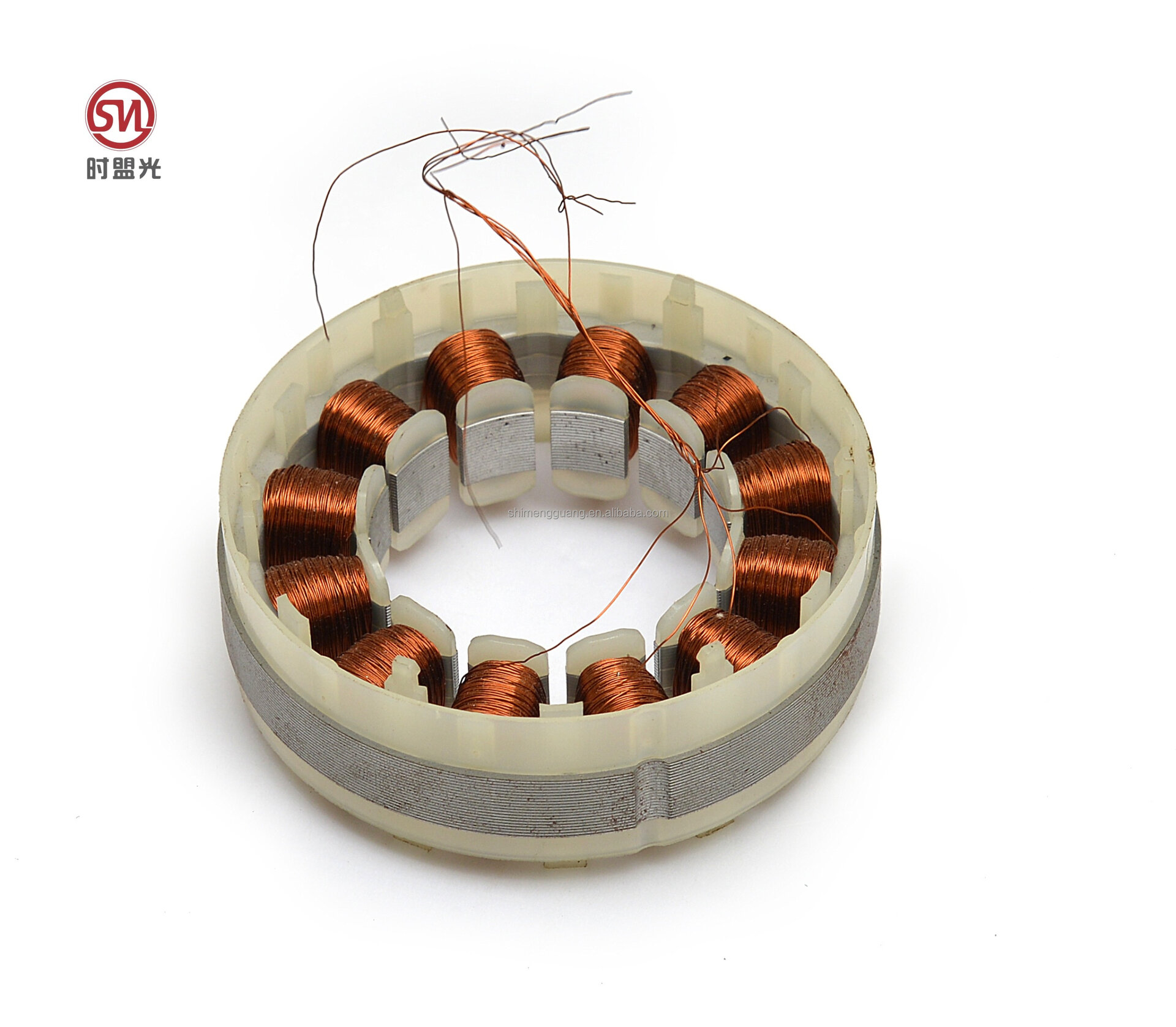

5-40mm (including skeleton height)
|
|

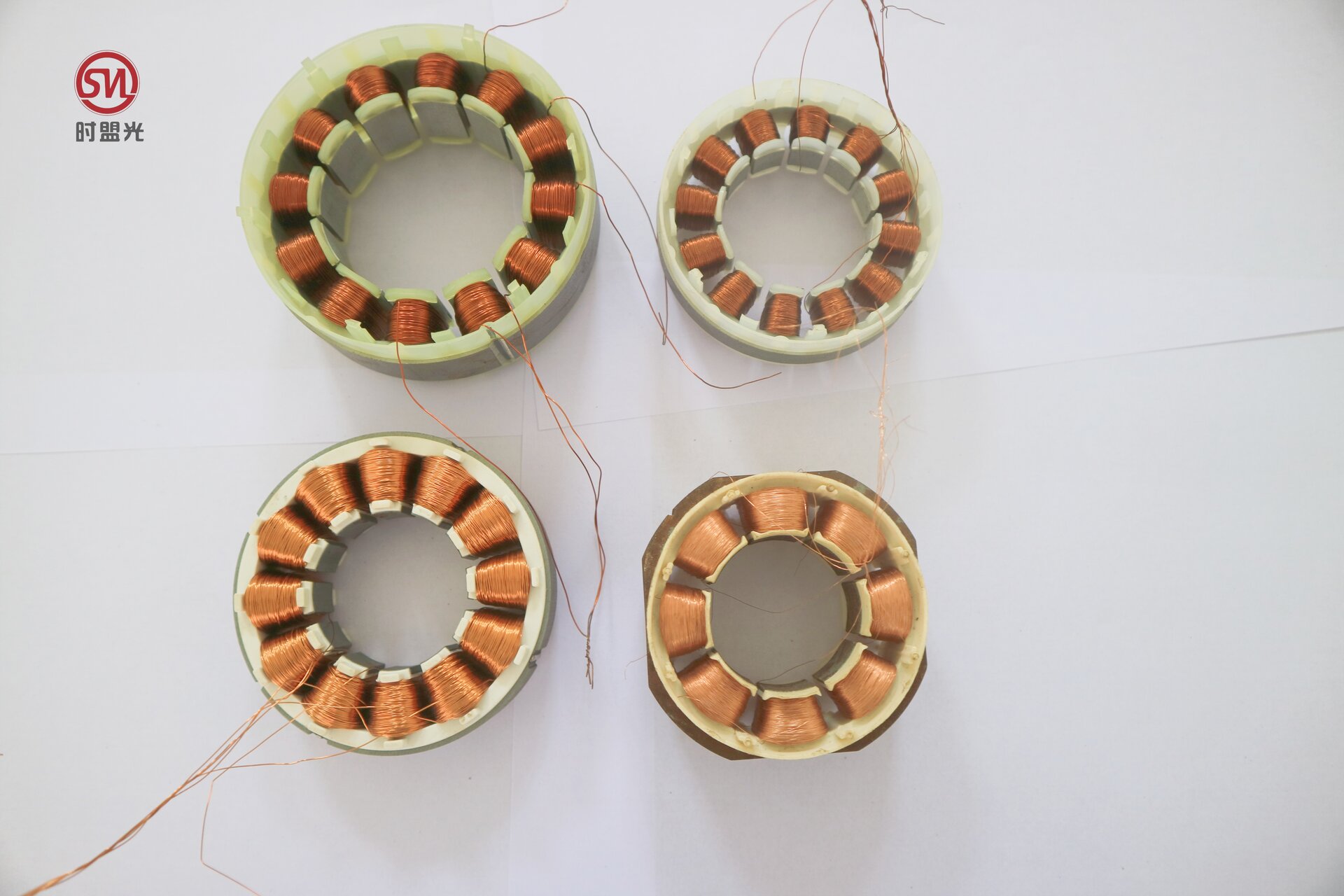

Number of stator slots
|
6 slots, 8 slots, 9 slots, 12 slots, 18 slots
|
|
Controller
|
Mitsubishi
|
|
Transmission servo
|
3 sets
|
|
Air pressure
|
4-7kg/cm ²
|
|
Power supply
|
3-phase 380V 50Hz
|
|
Power
|
4.5KW
|

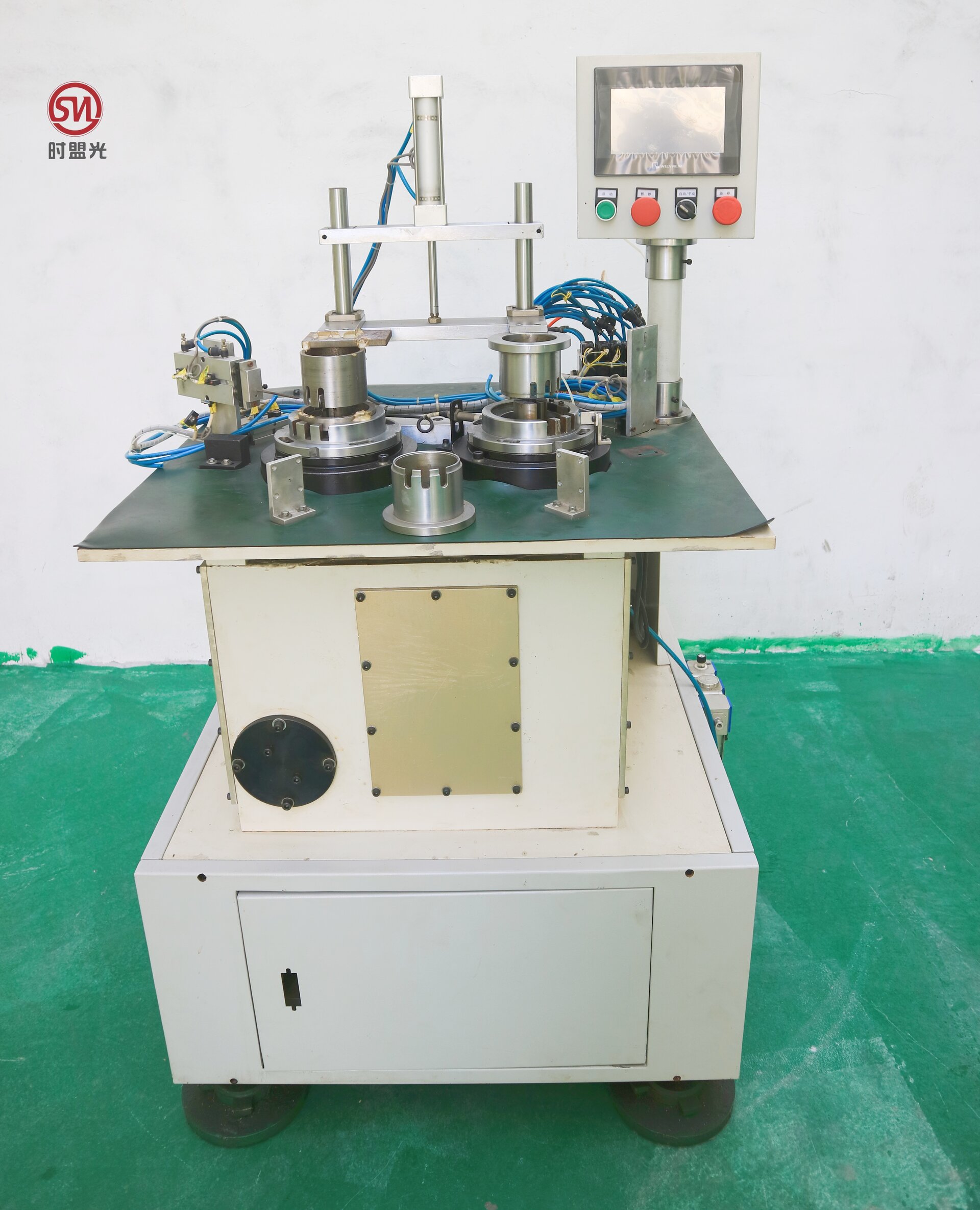

Product model: SMG-WS102
Machine Description: This type of winding machine is a high-speed stator winding machine that can be wound with 3 or more nozzles simultaneously. The winding shaft can operate at high speed and is suitable for mass production; Replacing different stacked thickness varieties is simple, convenient, and fast. The machine adopts servo precise positioning, automatic wire winding, automatic wire arrangement, automatic indexing, and automatic wire cutting, achieving the optimal cost-effectiveness of batch production equipment. It is the optimal cost-effective model for three-phase brushless motor stator.

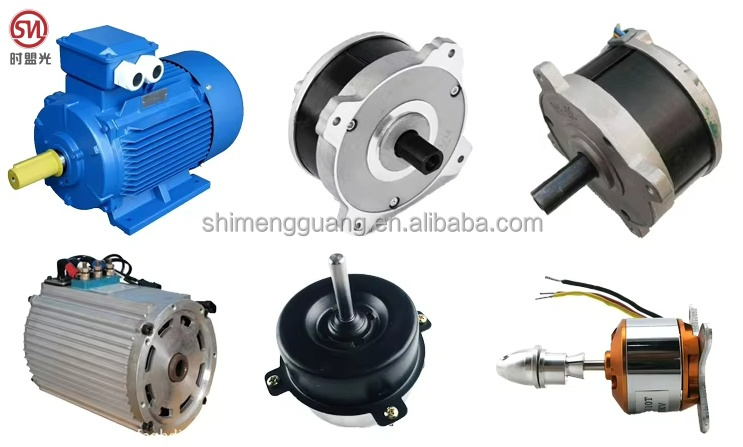

Foshan Shimengguang Precision Machinery Co., Ltd. is a professional motor equipment manufacturer dedicated to research and development, design, manufacturing, sales, and service. Our main products include brushless motors, servo motors, stepper motors, variable frequency motors, blower brushless motors, water pump motors, inner wound stator motors, outer wound stator motors, induction motors, series excitation motors, new energy motors, and various types of micro motor production and manufacturingequipment.
