SMG Stator Winding Welding Machine For Servo Motors Stepper motors Fan Motors Stator Coil Welding
| Model Number | SMG-HJ401 |
| customization | Customized logo Customized packaging |
Product Details
Overview
Basic Properties
- Place of Origin
- Guangdong, China
- Brand Name
- SMG
- Condition
- New
- Weight (KG)
- 500
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- Ordinary Product
- Warranty of core components
- 1 Year
- Core Components
- Engine, Motor
- Warranty
- 1 Year
- Applicable Industries
- Manufacturing Plant
- Showroom Location
- None
- Product name
- Automatic Straight Stator Winding Machine
- Application
- Automation Equipment
- Function
- Multifunctional
- Type
- Autamtic Working
- Power
- 10kw
- Voltage
- 380V, 50 Hz, 3 Phase
Other Properties
- Place of Origin
- Guangdong, China
- Condition
- New
- Weight (KG)
- 500
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- Ordinary Product
- Warranty of core components
- 1 Year
- Core Components
- Engine, Motor
- Warranty
- 1 Year
- Applicable Industries
- Manufacturing Plant
- Showroom Location
- None
- Brand Name
- SMG
- Product name
- Automatic Straight Stator Winding Machine
- Application
- Automation Equipment
- Function
- Multifunctional
- Type
- Autamtic Working
- Power
- 10kw
- Voltage
- 380V, 50 Hz, 3 Phase
Packaging & Delivery
Video Description

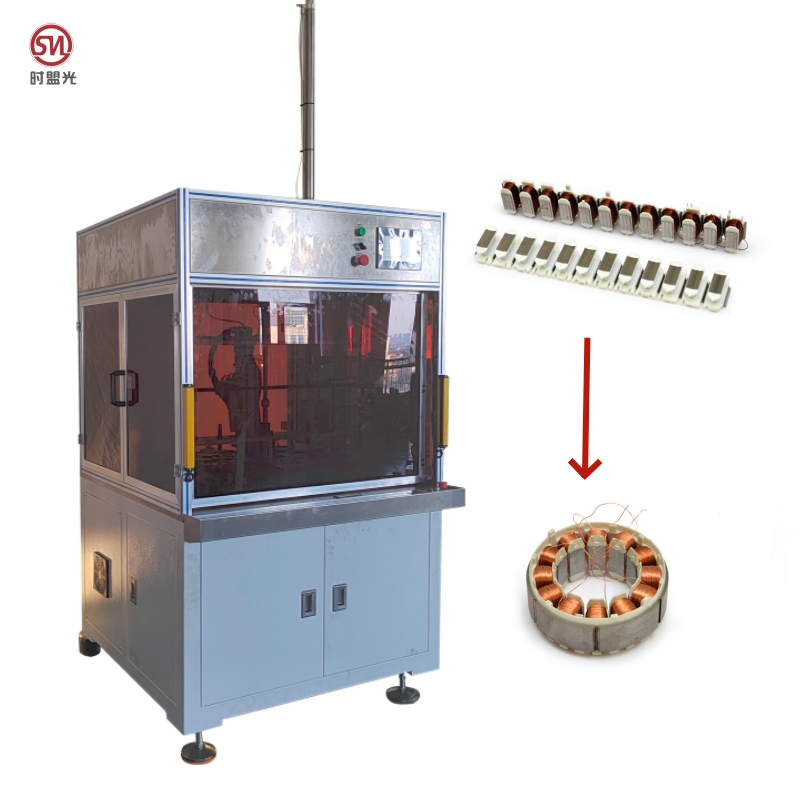

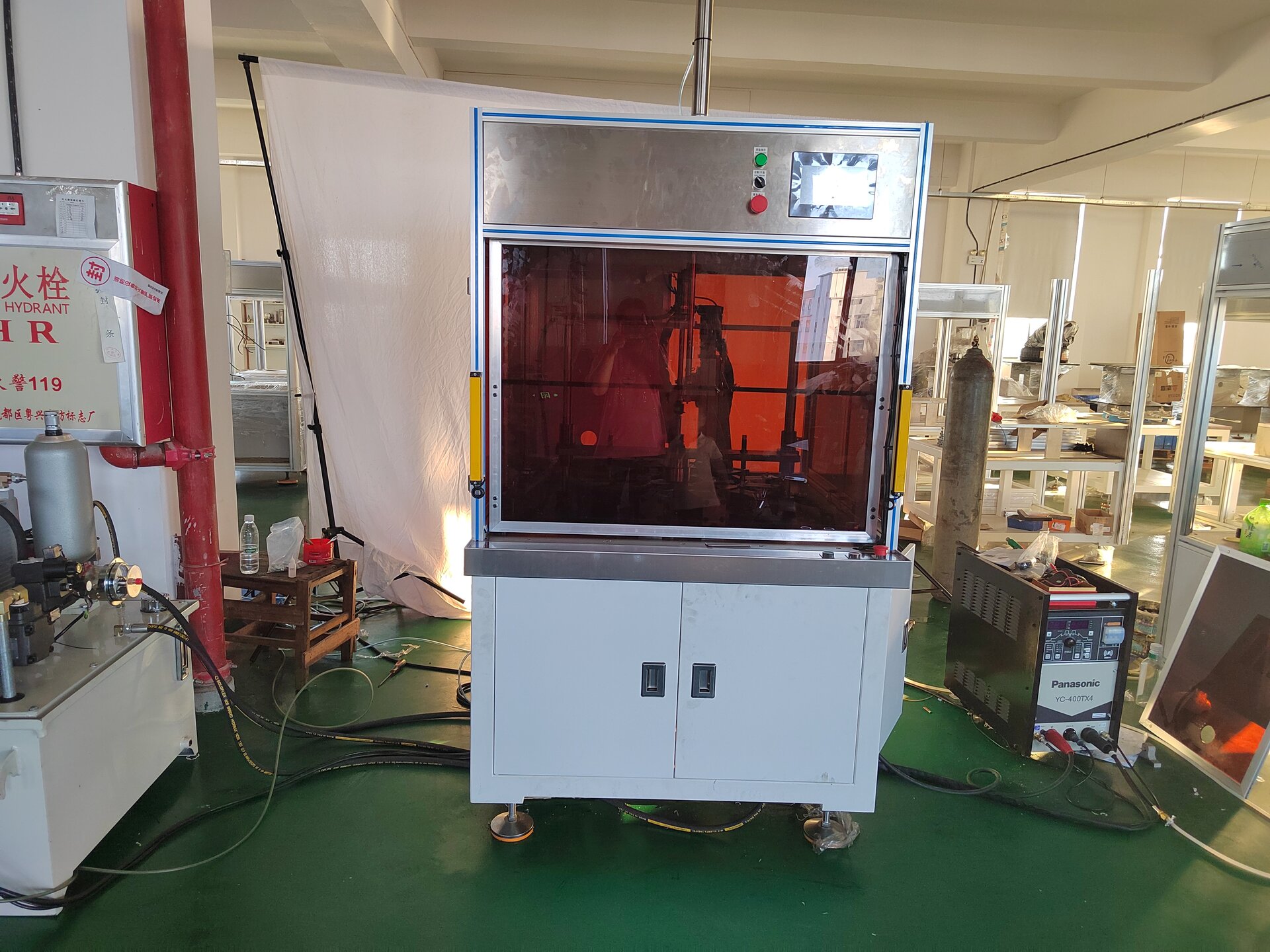

Automatic Straight Stator Winding Machine
Model:SMG-HJ401
Product Range: It is mainly used for variable frequency air conditioning plastic encapsulated motor (BLDC) stator coil welding, new energy motor and other DC brushless motors.

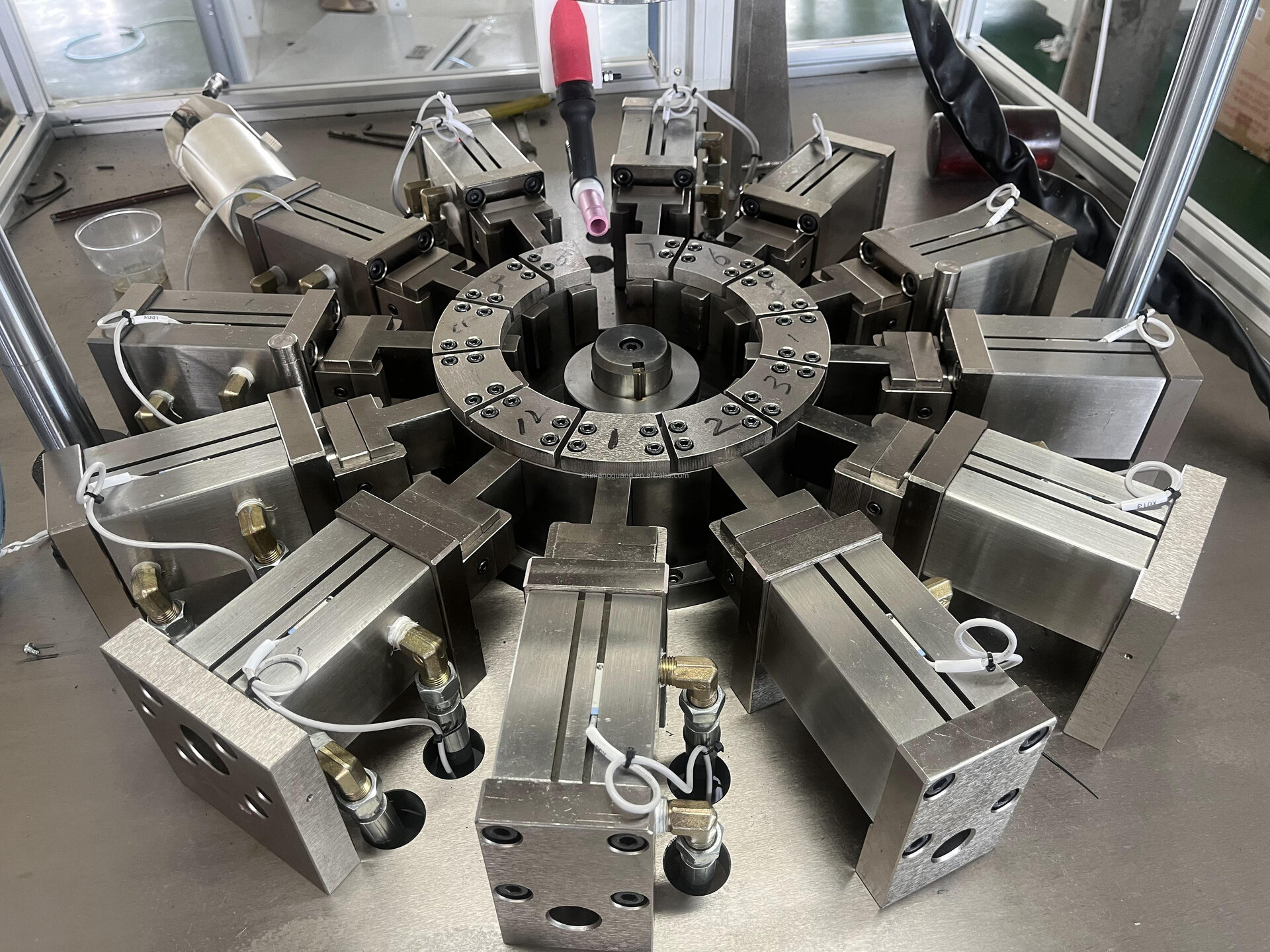

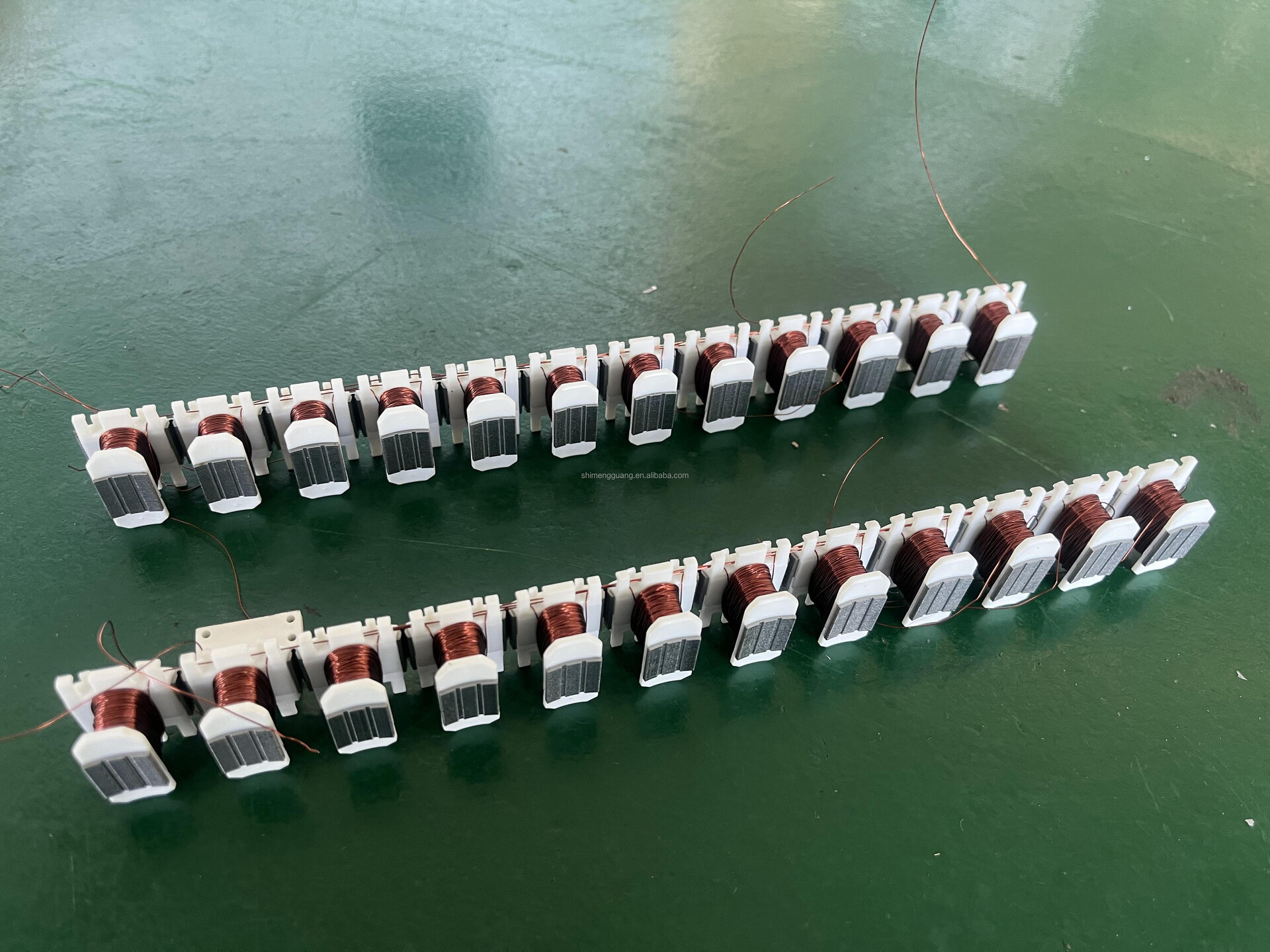

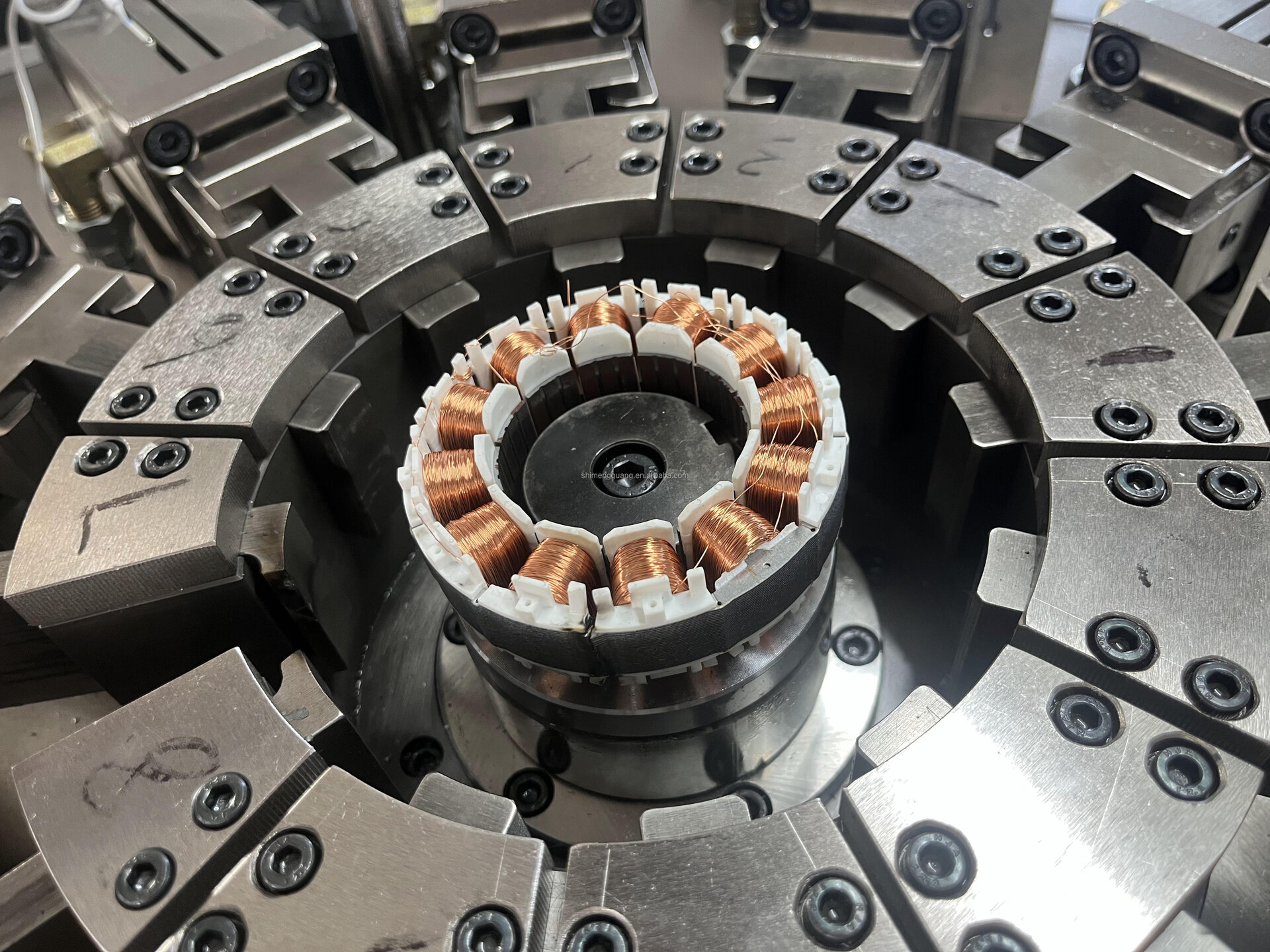

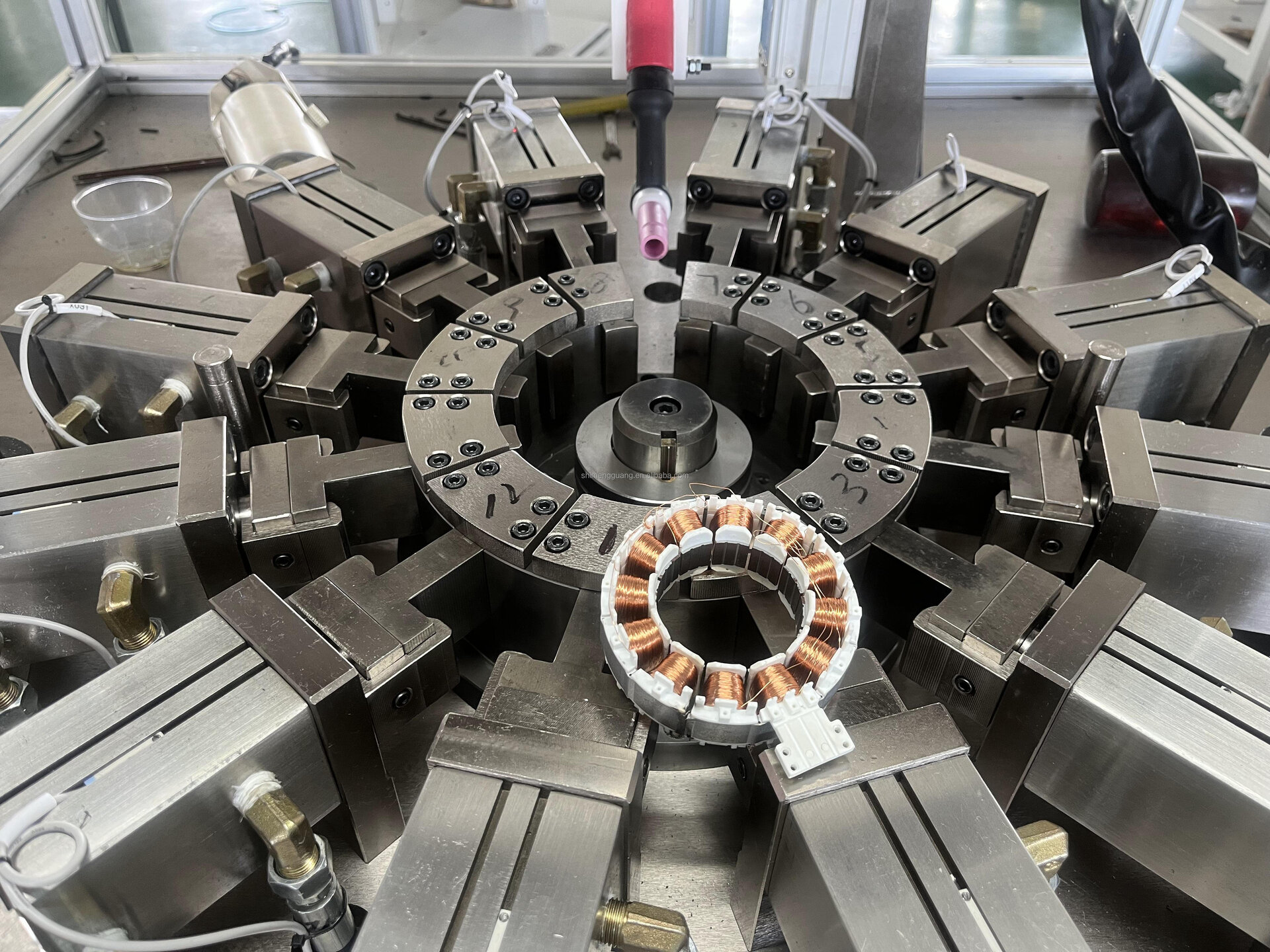

Machine Features: This model uses imported oil cylinders with the same number of slots to crimp the straight iron core or chain iron core wrapped with coils in a certain order, and then use argon arc welding or laser welding machine for welding, so as to obtain the stator that meets the requirements.
Machine Features: This model uses imported oil cylinders with the same number of slots to crimp the straight iron core or chain iron core wrapped with coils in a certain order, and then use argon arc welding or laser welding machine for welding, so as to obtain the stator that meets the requirements.
Product Details
Voltage | 380V, 50 Hz, 3 Phase |
Source pressure | 0.4-0.7 Mpa |
Working station | 1 |
Stator inter diameter | ≥Ф15mm |
Stator outer diameter | ≤Ф150mm |
Stator stack thickness | 0-40 mm |
Stator slots number | Any |
Argon arc welding machine | Panasonic |
Motor | 10 Kw |
Machine dimension | 1700x1200x1900 mm |
Machine weight | 500 Kg |
Foshan Shimengguang Precision Machinery Co., Ltd. is a professional motor equipment manufacturer dedicated to research and development, design, manufacturing, sales, and service. Our main products include brushless motors, servo motors, stepper motors, variable frequency motors, blower brushless motors, water pump motors, inner wound stator motors, outer wound stator motors, induction motors, series excitation motors, new energy motors, and various types of micro motor production and manufacturing equipment.
