Speaker Motor Coil Winding Machine Outrunner Winding Machine Coil Winding Machinery
| Model Number | SMG-NR202 |
Product Details
Overview
Basic Properties
- Place of Origin
- Guangdong, China
- Brand Name
- SMG, SMG
- Condition
- New
- Weight (KG)
- 800
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Core Components
- Motor
- Warranty
- 1 Year
- Applicable Industries
- Building Material Shops, Manufacturing Plant, Machinery Repair Shops
- Showroom Location
- None
- weight
- 550kg
- Voltage
- 380V,50Hz
- Working station
- 2
- Stator inter diameter
- ≥15mm
- Controller
- 5 Axis
- Motor power
- 10KW
Other Properties
- Place of Origin
- Guangdong, China
- Condition
- New
- Weight (KG)
- 800
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Core Components
- Motor
- Warranty
- 1 Year
- Applicable Industries
- Building Material Shops, Manufacturing Plant, Machinery Repair Shops
- Showroom Location
- None
- Brand Name
- SMG
- weight
- 550kg
- Brand Name
- SMG
- Voltage
- 380V,50Hz
- Working station
- 2
- Stator inter diameter
- ≥15mm
- Controller
- 5 Axis
- Motor power
- 10KW
Packaging & Delivery
Suitable wire diameter | Ф 0.08- Ф 0.86mm |
Number of workstations | 2 |
Inner diameter of stator | ≥ Ф 30mm |
Outer diameter of stator | ≤ Ф 120mm |
Stator stack thickness | 5-50mm (including skeleton height) |
Transmission servo | 4 sets |
Number of stator slots | 6-18 slots |
Air pressure | 4-7kg/cm ² |
Power supply | 3-phase 380V 50Hz |
Power | 3.5KW |
Product model: SMG-WS102

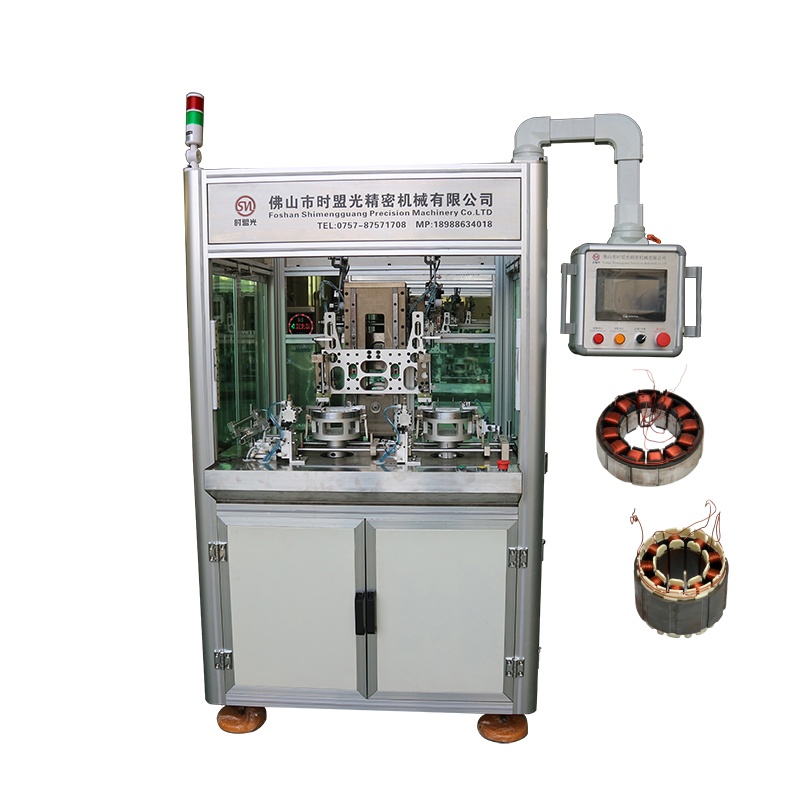

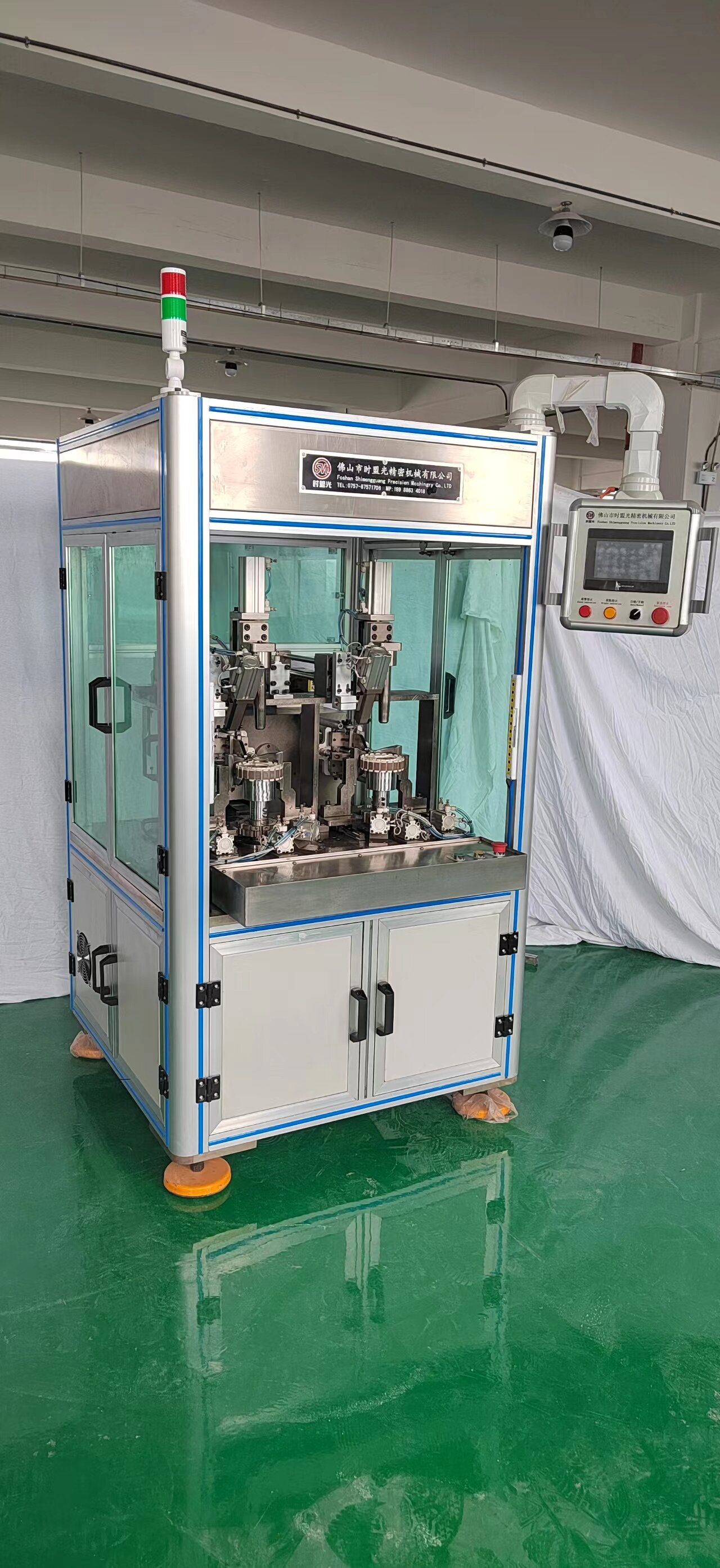

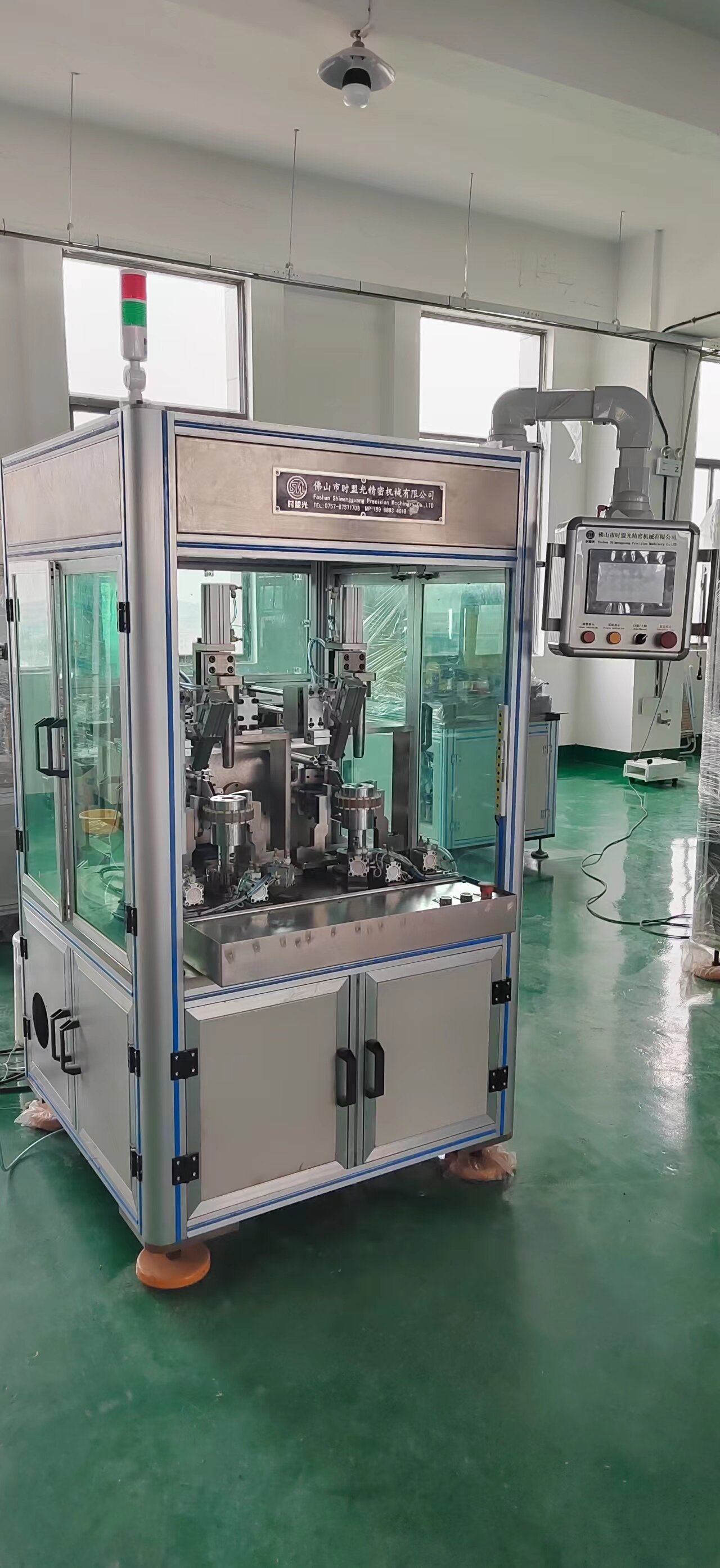

Product name: Two station brushless stator winding machine

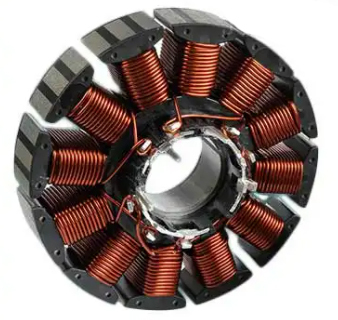

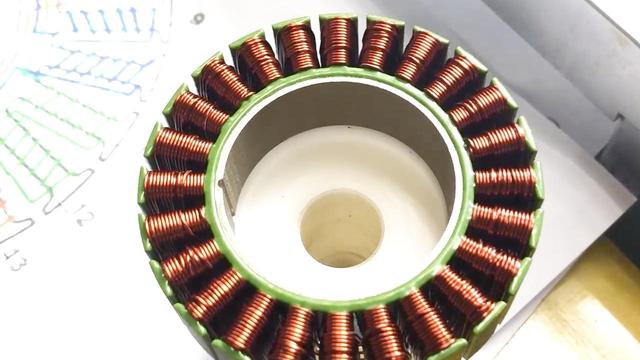

Product Range: Brushless motors, stepper motors, fan motors, elevator door motors, new energy motors, and other types of DC brushless motors.

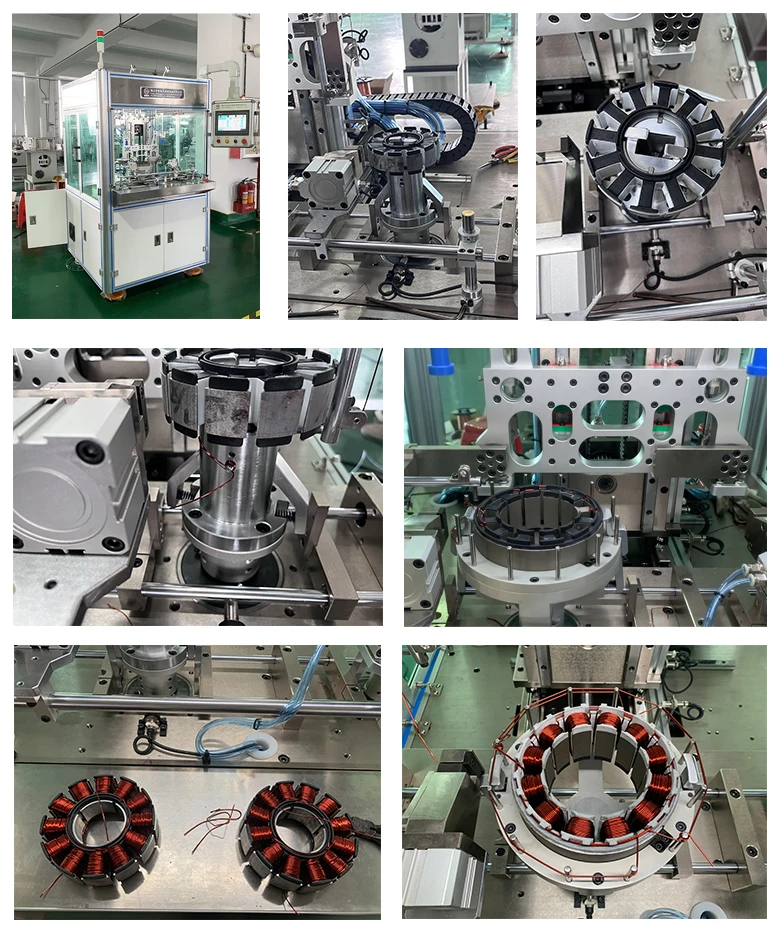

Machine Description:This winding machine is a dual station stator winding model, which can be wound with 3 nozzles at the same time. The winding shaft can operate at high speed and is suitable for mass production; Replacing different stacked thickness varieties is simple, convenient, and fast. The machine adopts servo precise positioning, automatic winding, automatic wire arrangement, and automatic positioning, achieving the optimal cost-effectiveness of batch production equipment. It is the optimal cost-effective model for three-phase stator and single-phase fan motors, as well as stepper motors.
Foshan Shimengguang Precision Machinery Co., Ltd. is a professional motor equipment manufacturer dedicated to research and development, design, manufacturing, sales, and service. Our main products include brushless motors, servo motors, stepper motors, variable frequency motors, blower brushless motors, water pump motors, inner wound stator motors, outer wound stator motors, induction motors, series excitation motors, new energy motors, and various types of micro motor production and manufacturingequipment.
