Aluminum Rotor Die Casting Aluminium Die Casting Machine Price Aluminium Die Casting Machine
| Model Number | SMG-ZL101 |
| customization | Customized logo Customized packaging Graphic customization |
Product Details
Overview
Basic Properties
- Place of Origin
- Guangdong, China
- Condition
- New
- Machine Type
- Cold Chamber Die Casting Machine
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Core Components
- PLC, Engine, Gearbox, Motor, Gear, Pump
- Brand Name
- SMG
- Voltage
- 380V
- Power
- 3.75KW, 380V 50/60Hz 3.75KW
- Dimension(L*W*H)
- 970x920x2300mm
- Warranty
- 1 Year
- Key Selling Points
- Fully Automatic
- Showroom Location
- None
- Applicable Industries
- Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Other
- Weight (KG)
- 2500
- Hydraulic motor power
- 7.5kw
- Oil tank capacity
- 350L
- Rotor stack length
- ≤100mm
- Rotor OD
- ≤100mm
- Pitch time
- ≤18~24s
- Change-over time
- 20mins
- Upper Presser operation pressure
- 40T
- Bottom presser operation pressure
- 15T
- Working pressure of oil cylinder
- ≤21Mpa
Other Properties
- Place of Origin
- Guangdong, China
- Machine Type
- Cold Chamber Die Casting Machine
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Core Components
- PLC, Engine, Gearbox, Motor, Gear, Pump
- Warranty
- 1 Year
- Key Selling Points
- Fully Automatic
- Showroom Location
- None
- Applicable Industries
- Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Other
- Weight (KG)
- 2500
- Condition
- New
- Brand Name
- SMG
- Voltage
- 380V
- Power
- 3.75KW
- Dimension(L*W*H)
- 970x920x2300mm
- Hydraulic motor power
- 7.5kw
- Oil tank capacity
- 350L
- Rotor stack length
- ≤100mm
- Rotor OD
- ≤100mm
- Pitch time
- ≤18~24s
- Change-over time
- 20mins
- Upper Presser operation pressure
- 40T
- Bottom presser operation pressure
- 15T
- Working pressure of oil cylinder
- ≤21Mpa
- Power
- 380V 50/60Hz 3.75KW
Supply Ability
- Supply Ability
- 10 Set/Sets per Month
Packaging & Delivery
Video Description
Products Description

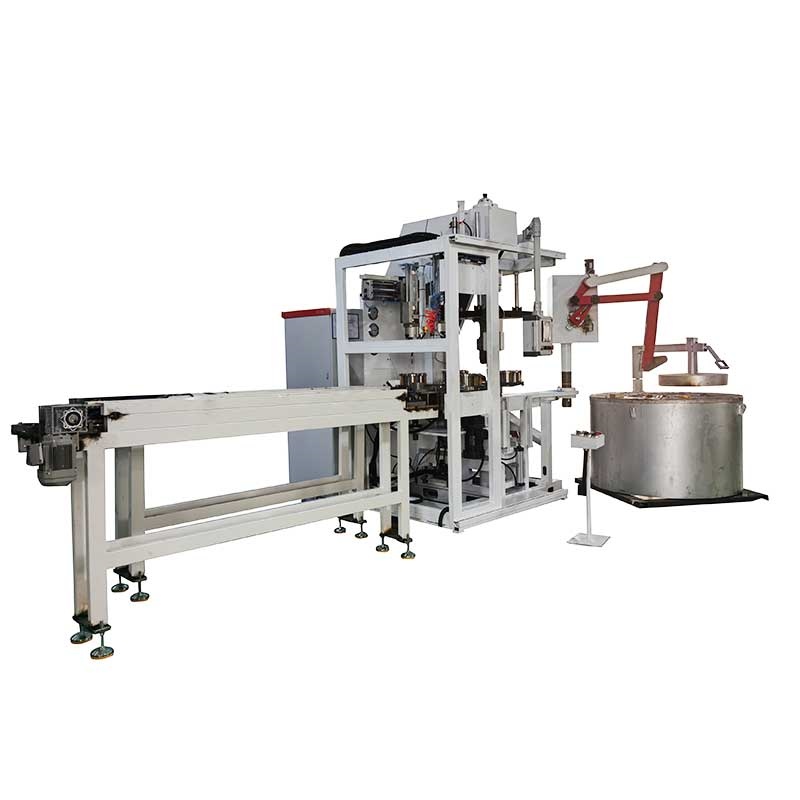

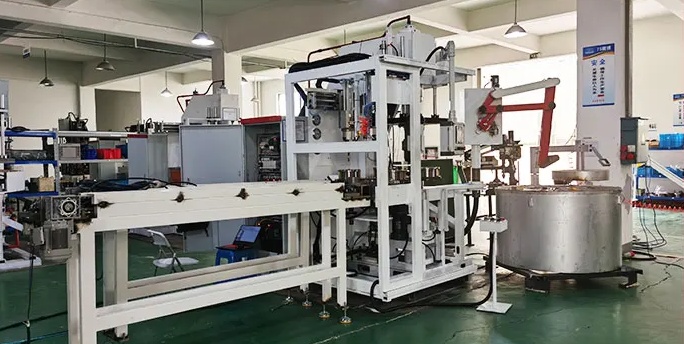

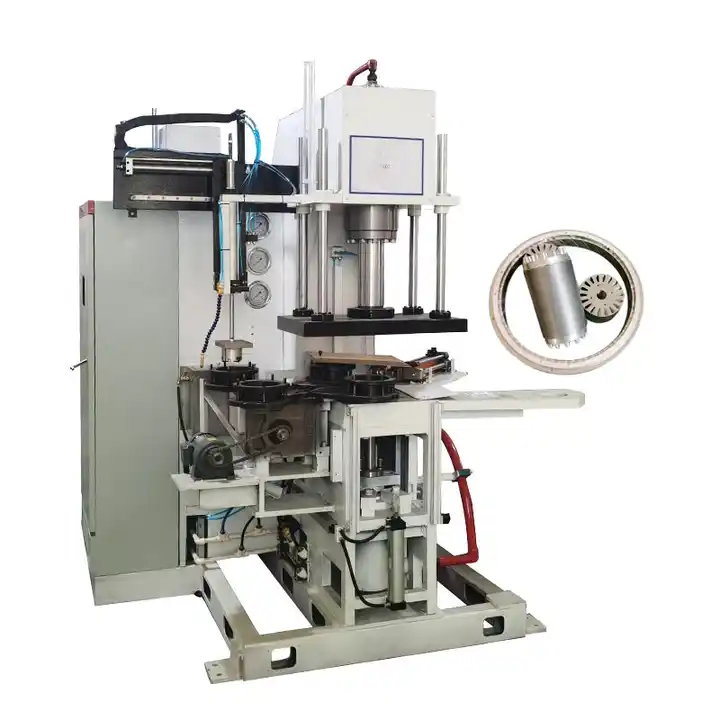

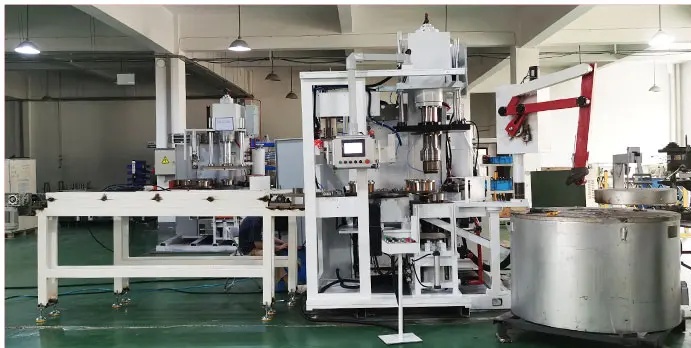

Fully Automatic Rotor Aluminum Die Casting Machine
Main Functions
•Automatic aluminum melt extraction
•Automatic loading and unloading rotor
Automatic cutting of scrap
Characteristic

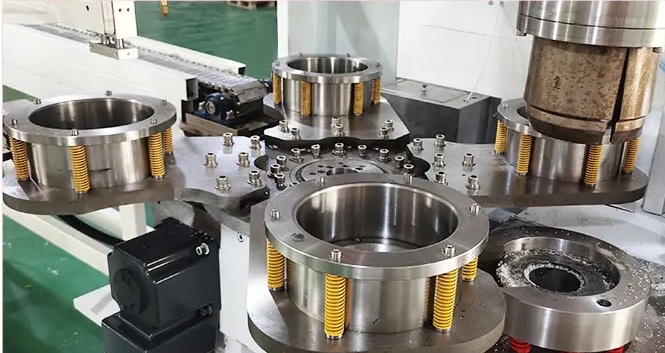

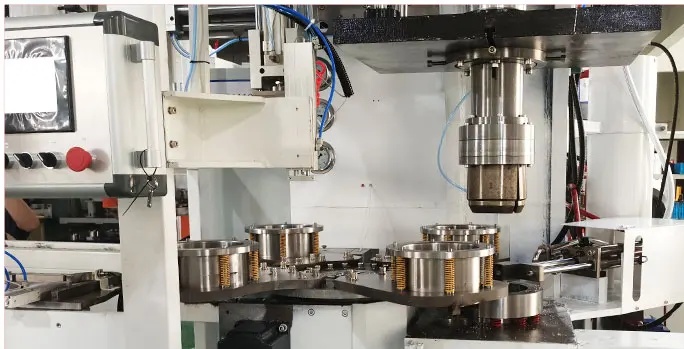

• Rotor loading: automatic pneumatic cycle pickup.
• Aluminum melt: servo motor controls the robot arm and controls the liquid quantity through the human-machine interface.
Product Details
Technical Parameter
Max Mold Closing Stroke | 150mm |
Pressing Injection Stroke | 50mm |
Hydraulic System Working Pressure | 10~25Mpa |
Hydraulic Motor Power | 7.5KW |
Oil Tank Capacity | 350L |
Working Pressure of Oil Cylinder | ≤21Mpa |
Power | 380V 50/60Hz 3.75KW |
