Multipolar Thick Line Winding Machine Smps Transformer Winding Machine Dc Armature Winding Machine
| Model Number | SMG-AW500 |
| customization | Customized logo |
Product Details
Overview
Basic Properties
- Condition
-
New
- Max. Load (KG)
-
3 KG
- Video outgoing-inspection
-
Provided
- Machinery Test Report
-
Provided
- Marketing Type
-
Ordinary Product
- Warranty of core components
-
1 Year
- Core Components
-
PLC, Motor
- Length of Axis (mm)
-
270 mm
- Center Height (mm)
-
70 mm
- Max.Transformer Capacity(kVA)
-
3 kVA
- Place of Origin
-
Guangdong, China
- Brand Name
-
SMG
- CNC or Not
-
Normal
- Motor Power (kw)
-
5
- Weight (KG)
-
1000
- Dimension(L*W*H)
-
1500*1900*1900
- Wire Diameter Range (mm)
-
0.2 - 1.2 mm
- Warranty
-
1 Year
- Key Selling Points
-
Famous brand PLC
- Applicable Industries
-
Retail, Manufacturing Plant
- Showroom Location
-
None
- Keyword
-
Armature Winding
Other Properties
- Condition
-
New
- Video outgoing-inspection
-
Provided
- Machinery Test Report
-
Provided
- Marketing Type
-
Ordinary Product
- Warranty of core components
-
1 Year
- Core Components
-
PLC, Motor
- Place of Origin
-
Guangdong, China
- CNC or Not
-
Normal
- Weight (KG)
-
1000
- Warranty
-
1 Year
- Key Selling Points
-
Famous brand PLC
- Applicable Industries
-
Retail, Manufacturing Plant
- Showroom Location
-
None
- Max. Load (KG)
-
3 KG
- Length of Axis (mm)
-
270 mm
- Center Height (mm)
-
70 mm
- Max.Transformer Capacity(kVA)
-
3 kVA
- Brand Name
-
SMG
- Motor Power (kw)
-
5
- Dimension(L*W*H)
-
1500*1900*1900
- Wire Diameter Range (mm)
-
0.2 - 1.2 mm
- Keyword
-
Armature Winding
Supply Ability
- Supply Ability
-
5 Set/Sets per Month
Packaging & Delivery
- Packaging Details
-
Export wooden box packaging

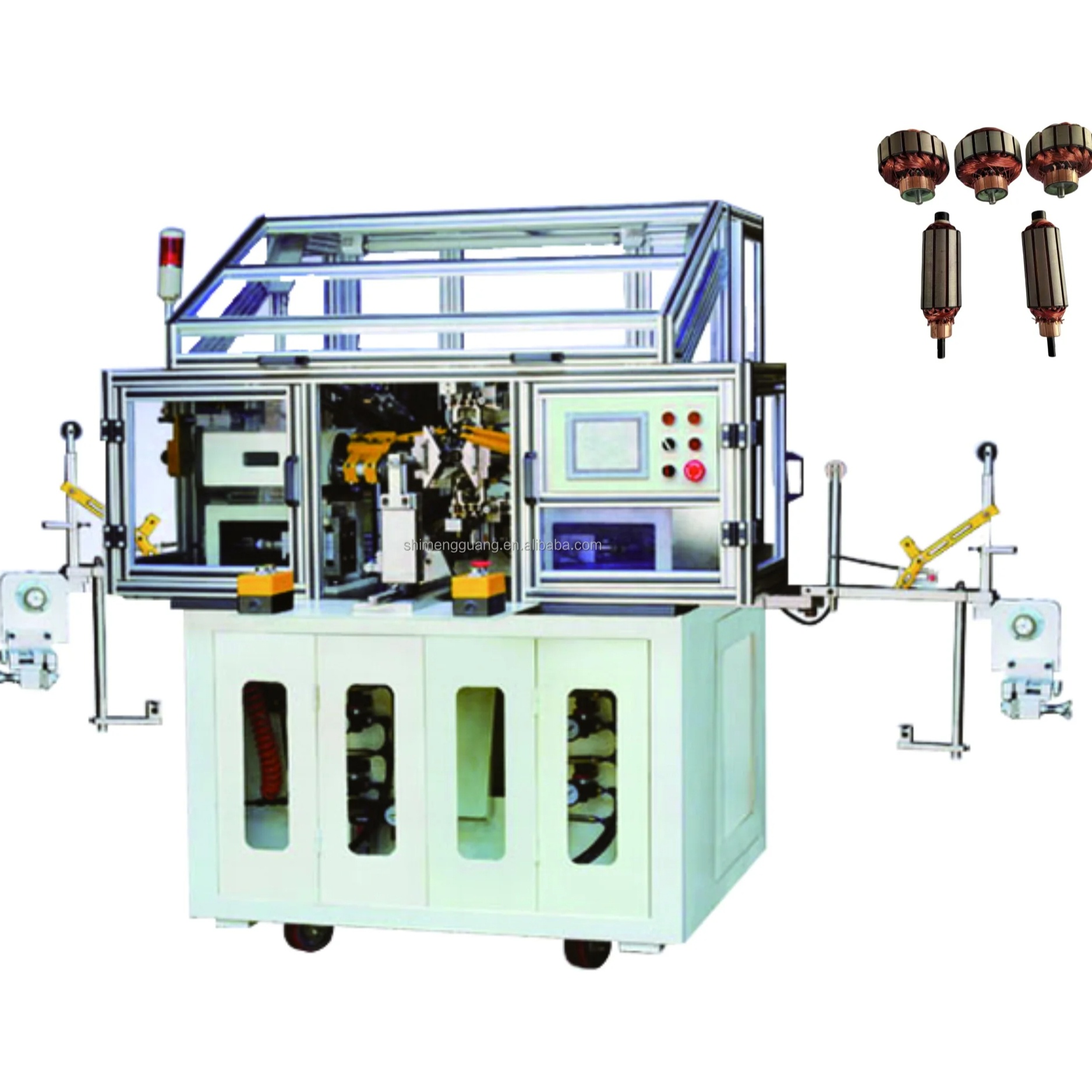

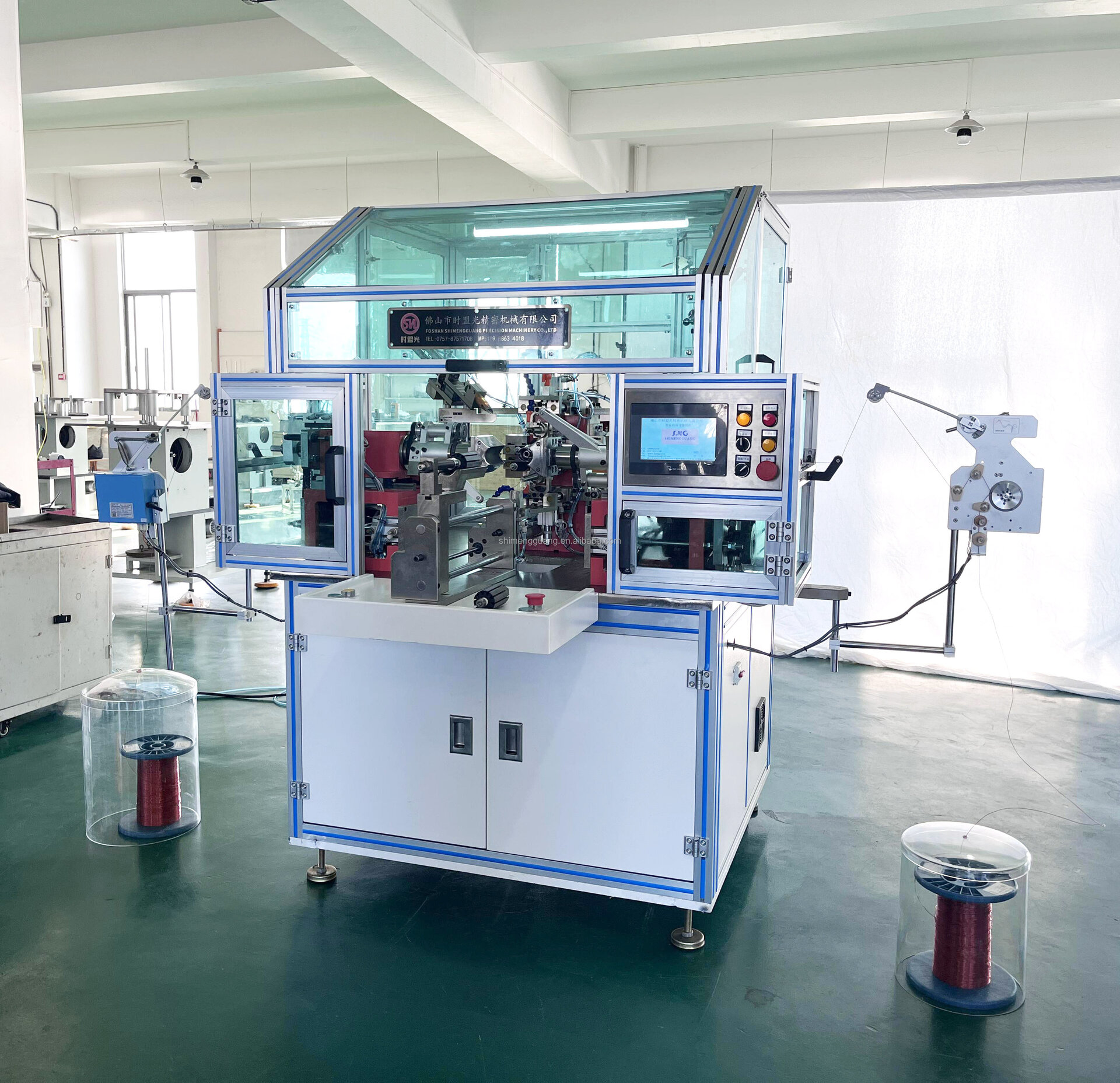

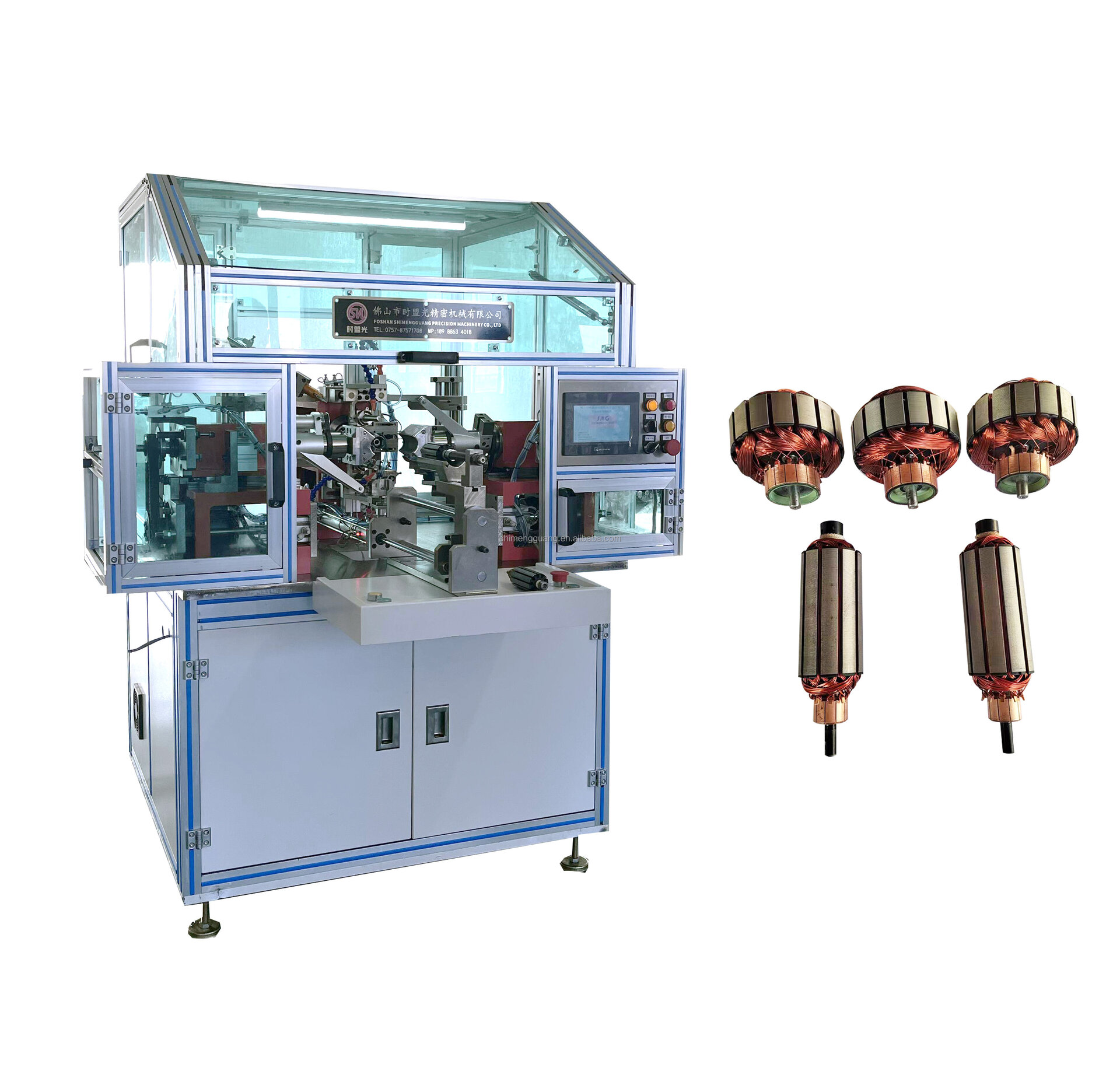

Automatic Armature Winding Machine
Product Model: SMG-AW500
Introduction to Equipment Functions and Principles：This device is automatically controlled by a servo motor to automatically wind, hang, and cut the rotor in a circular operation. The main components include the wire winding flying fork part, the indexing hook mechanism part, the wire cutting mechanism and other mechanical parts, as well as the control motor and electrical appliances. The auxiliary
components include the rack, hood, and cable rack.
|
Wire diameter
|
∅ 0.2-∅ 1.2mm
|
|

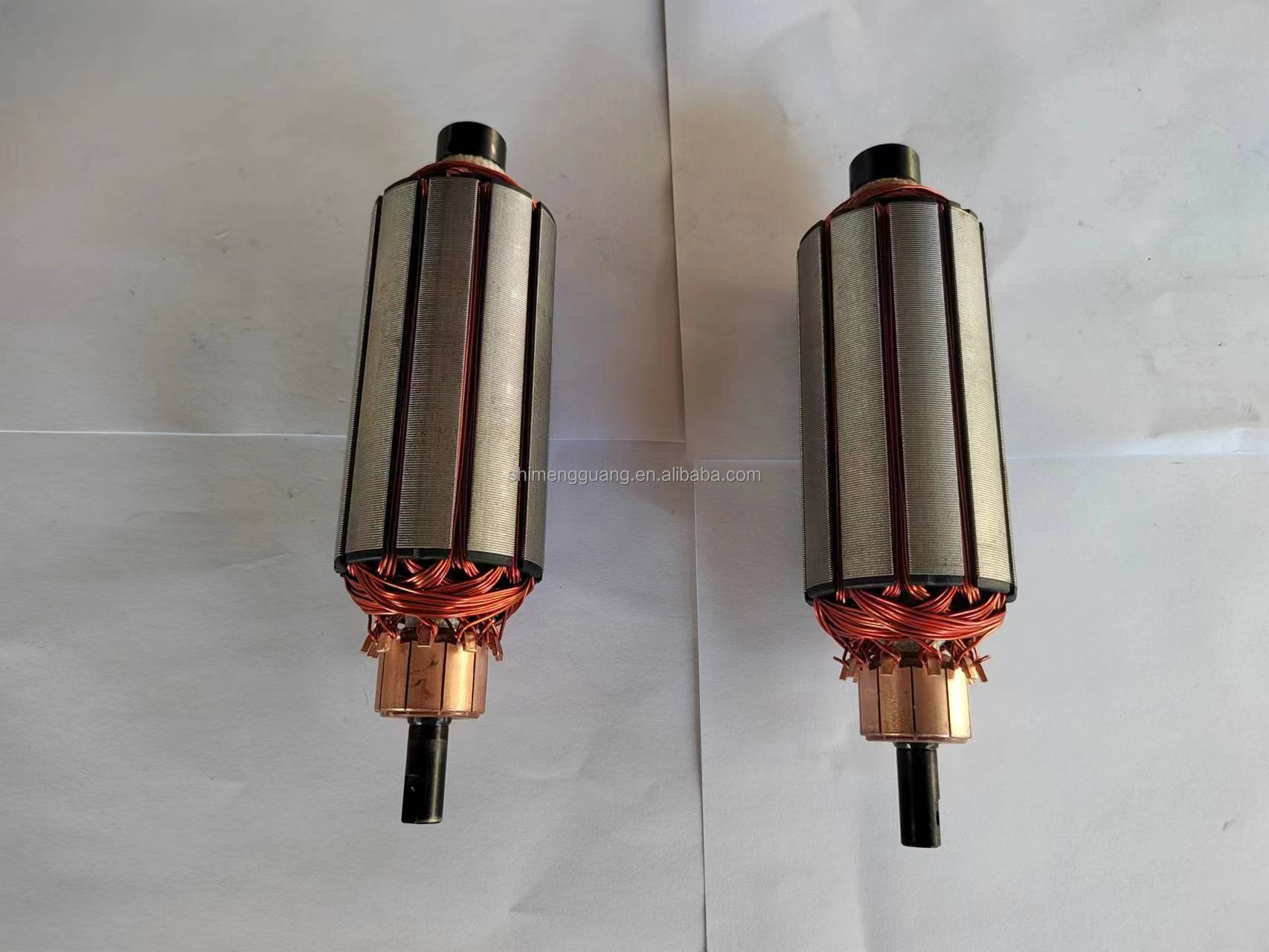

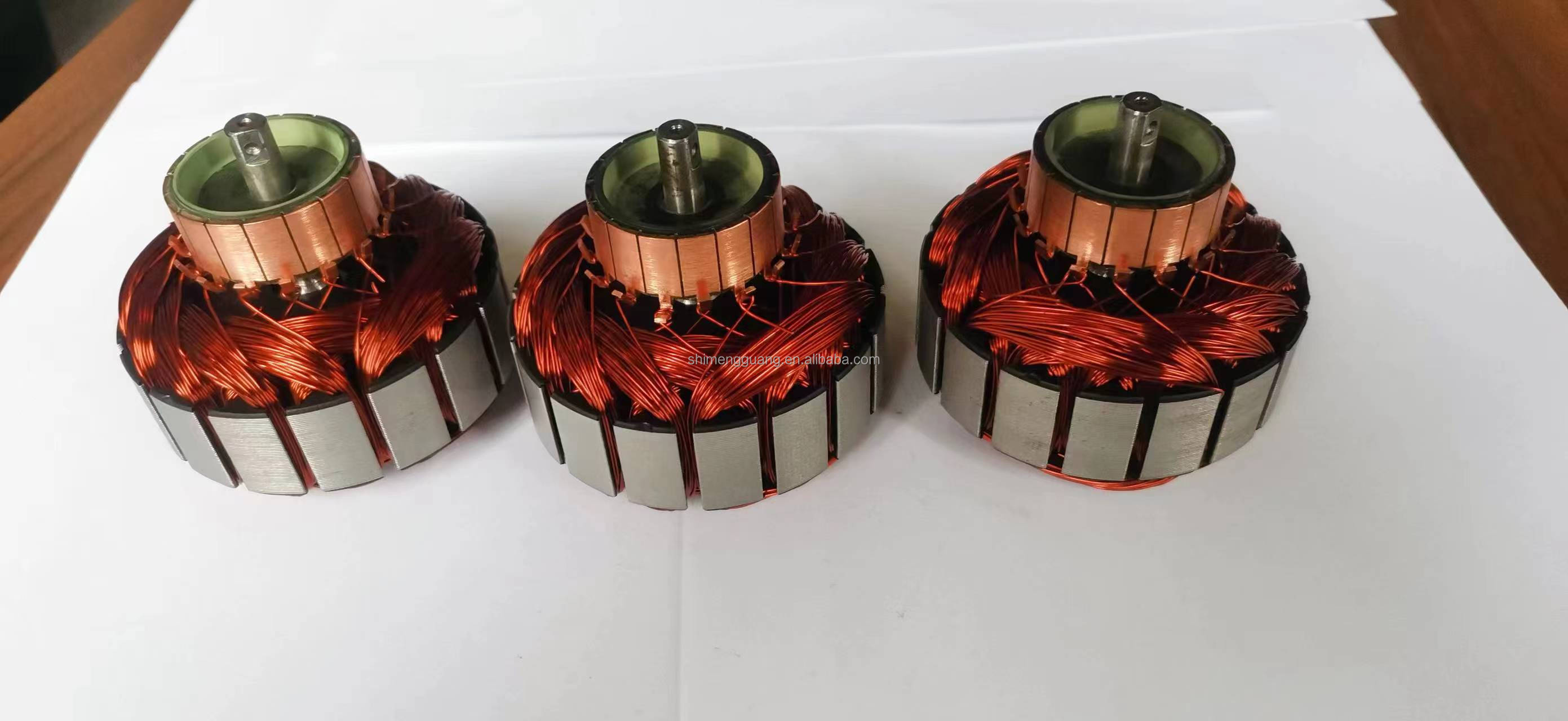

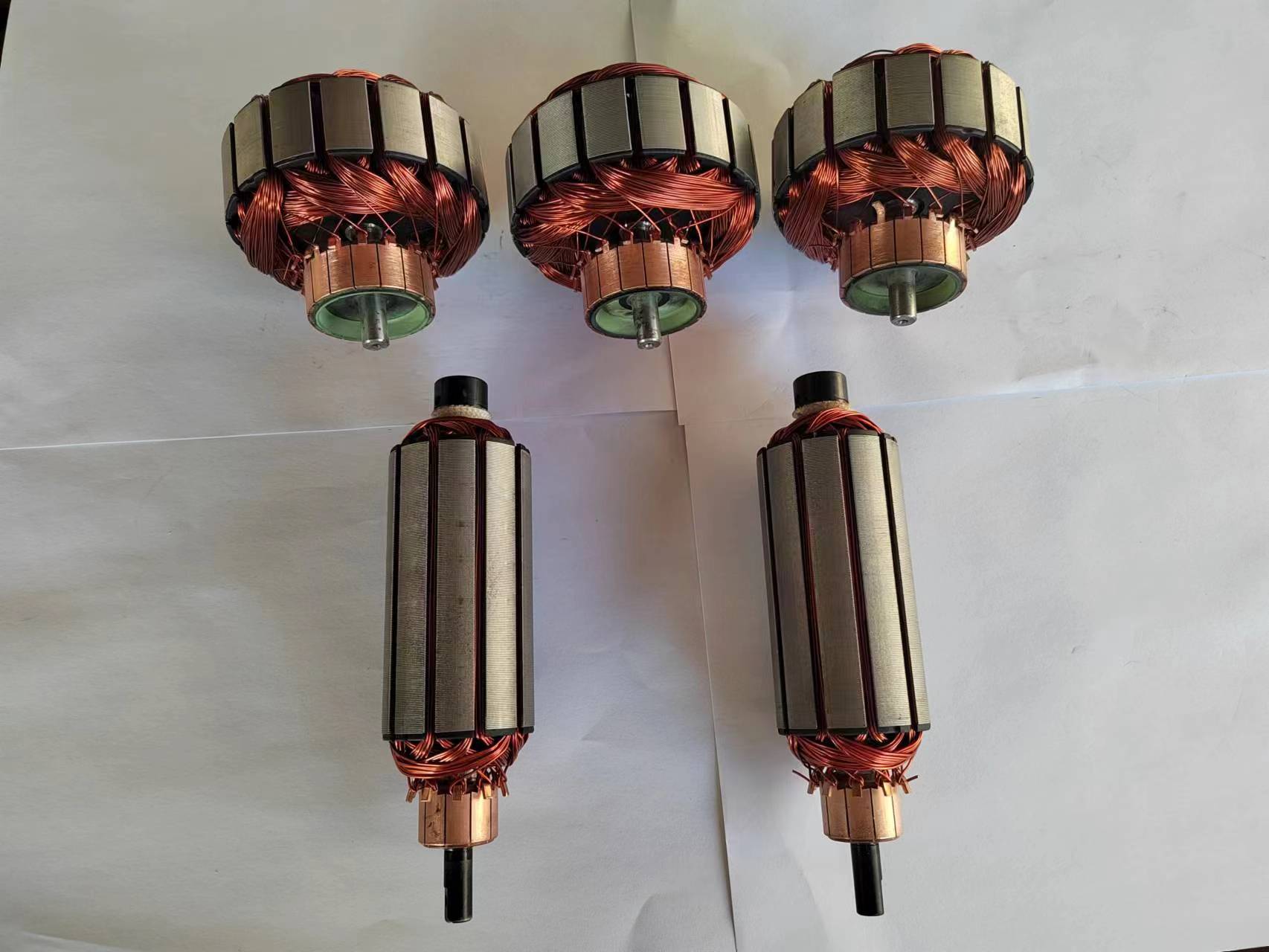

Armature O.D
|
∅ 20-∅ 70mm
|
|
Armature Stack Height
|
10-70 mm
|
|
Shaft Diameter
|
∅ 3-∅ 20mm
|
|
Shaft Lenght
|
≤270 mm
|
|
Slot Number
|
even number
|
|
Commutator diameter
|
∅ 10-∅ 50mm
|
|
Turn number
|
0-99999
|
|
Winding speed
|
0~3000 rpm
|
|
Indexing speed
|
0~3000 rpm
|
|
Action
|
Single action / automatic
|
|
Processing efficiency
|
900pcs/8hours(based оп аrmаtчrе with 12slots 24hooks, 20tчгпs)
|
