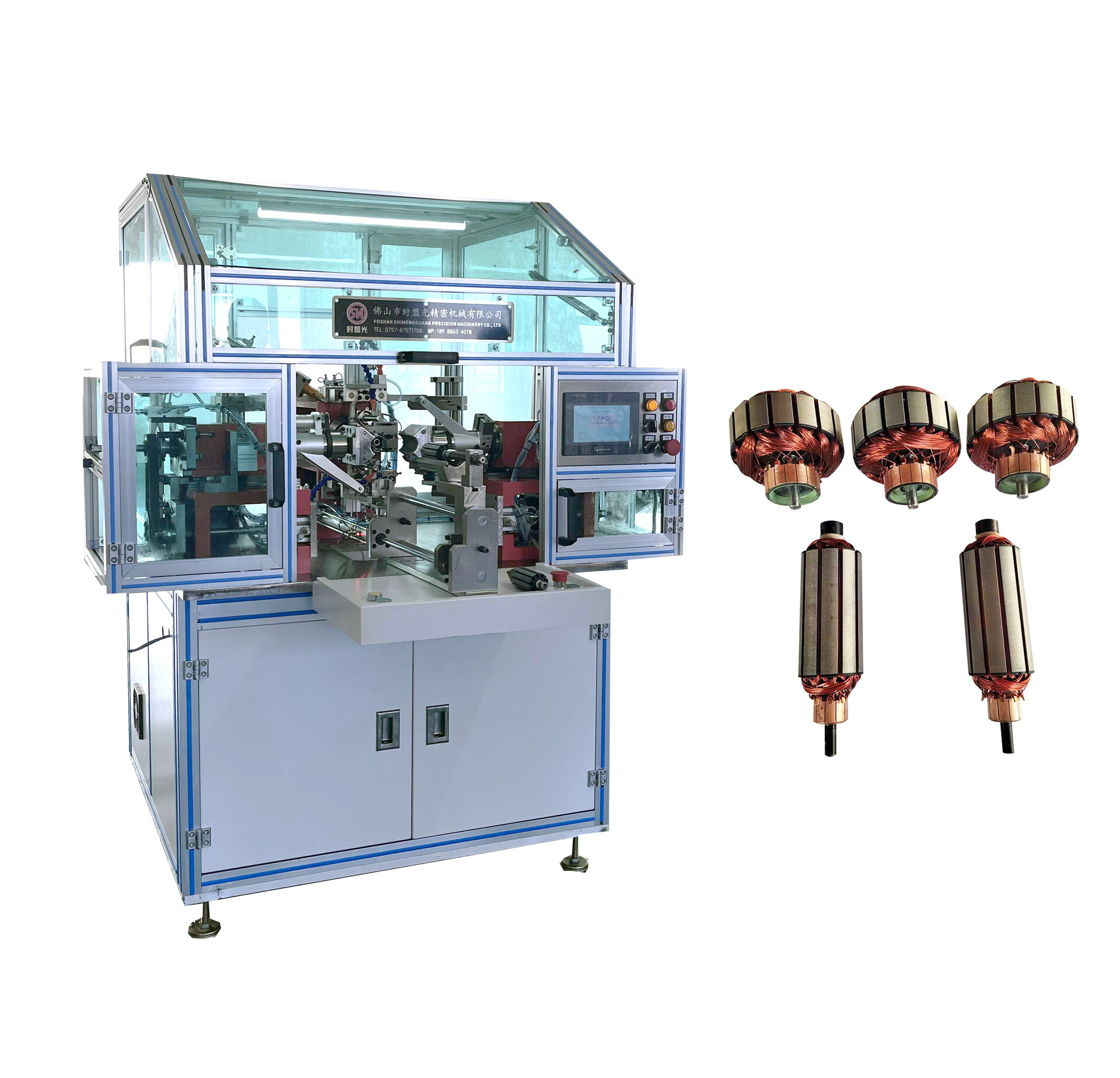

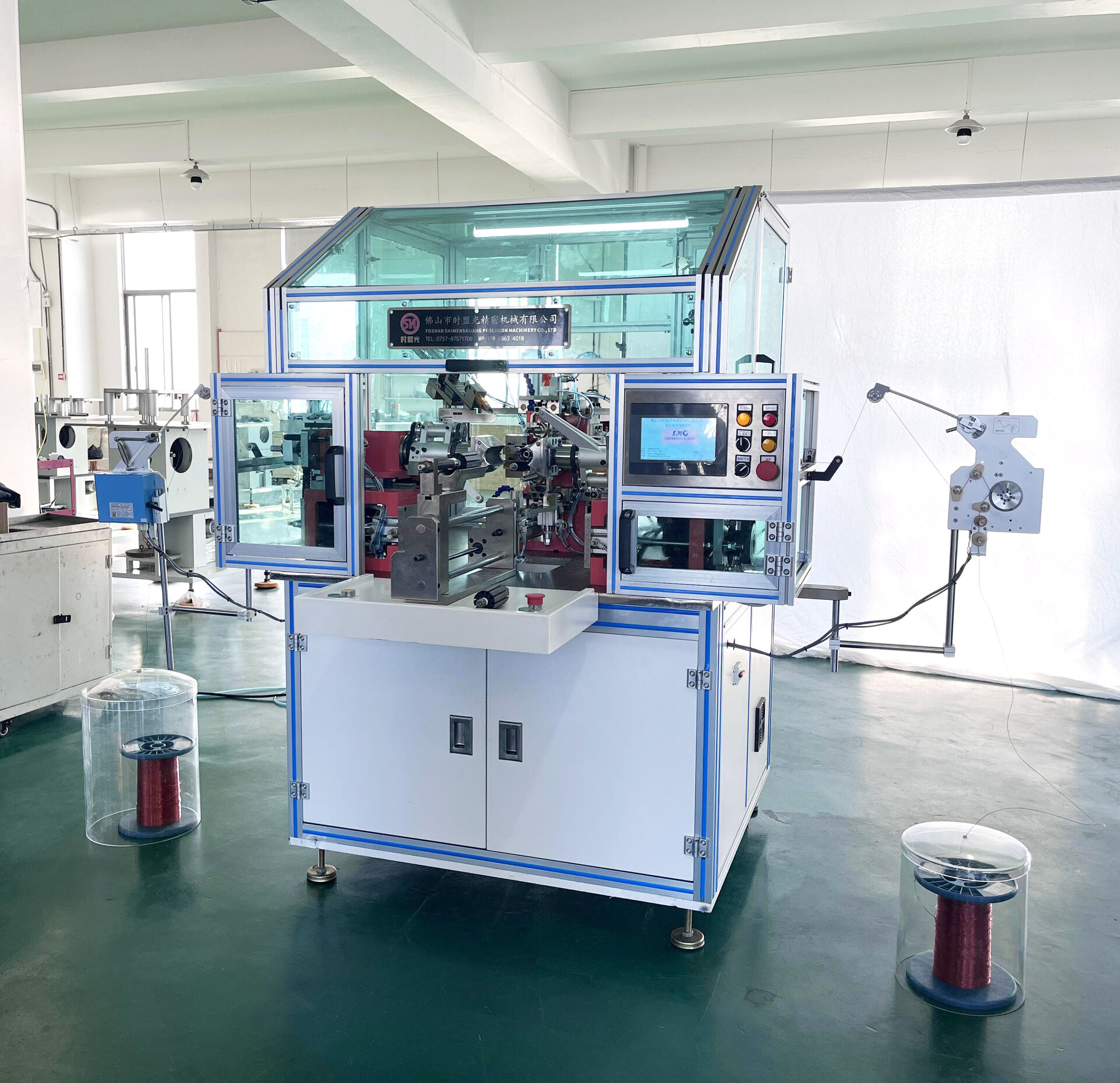

SMG Automatic Winding Coil Motor Rotor Coil Winding Motor Wire Winding Machine
| Model Number | SMG-GY004 |
Product Details
Overview
Basic Properties
- Condition
-
New
- Max. Load (KG)
-
100 KG
- Video outgoing-inspection
-
Provided
- Machinery Test Report
-
Provided
- Marketing Type
-
Ordinary Product
- Warranty of core components
-
1 Year
- Core Components
-
Motor
- Length of Axis (mm)
-
1 mm
- Center Height (mm)
-
1 mm
- Max.Transformer Capacity(kVA)
-
1 kVA
- Place of Origin
-
Guangdong, China
- Brand Name
-
SMG
- CNC or Not
-
CNC
- Weight (KG)
-
500
- Wire Diameter Range (mm)
-
0.1 - 1 mm
- Warranty
-
1 Year
- Key Selling Points
-
Automatic
- Applicable Industries
-
Machinery Repair Shops, Manufacturing Plant
- Showroom Location
-
None
Other Properties
- Condition
-
New
- Video outgoing-inspection
-
Provided
- Machinery Test Report
-
Provided
- Marketing Type
-
Ordinary Product
- Warranty of core components
-
1 Year
- Core Components
-
Motor
- Place of Origin
-
Guangdong, China
- CNC or Not
-
CNC
- Weight (KG)
-
500
- Warranty
-
1 Year
- Key Selling Points
-
Automatic
- Applicable Industries
-
Machinery Repair Shops, Manufacturing Plant
- Showroom Location
-
None
- Max. Load (KG)
-
100 KG
- Length of Axis (mm)
-
1 mm
- Center Height (mm)
-
1 mm
- Max.Transformer Capacity(kVA)
-
1 kVA
- Brand Name
-
SMG
- Wire Diameter Range (mm)
-
0.1 - 1 mm
Supply Ability
- Supply Ability
-
10 Set/Sets per Month
Packaging & Delivery
- Port
-
Guangzhou
Video Description

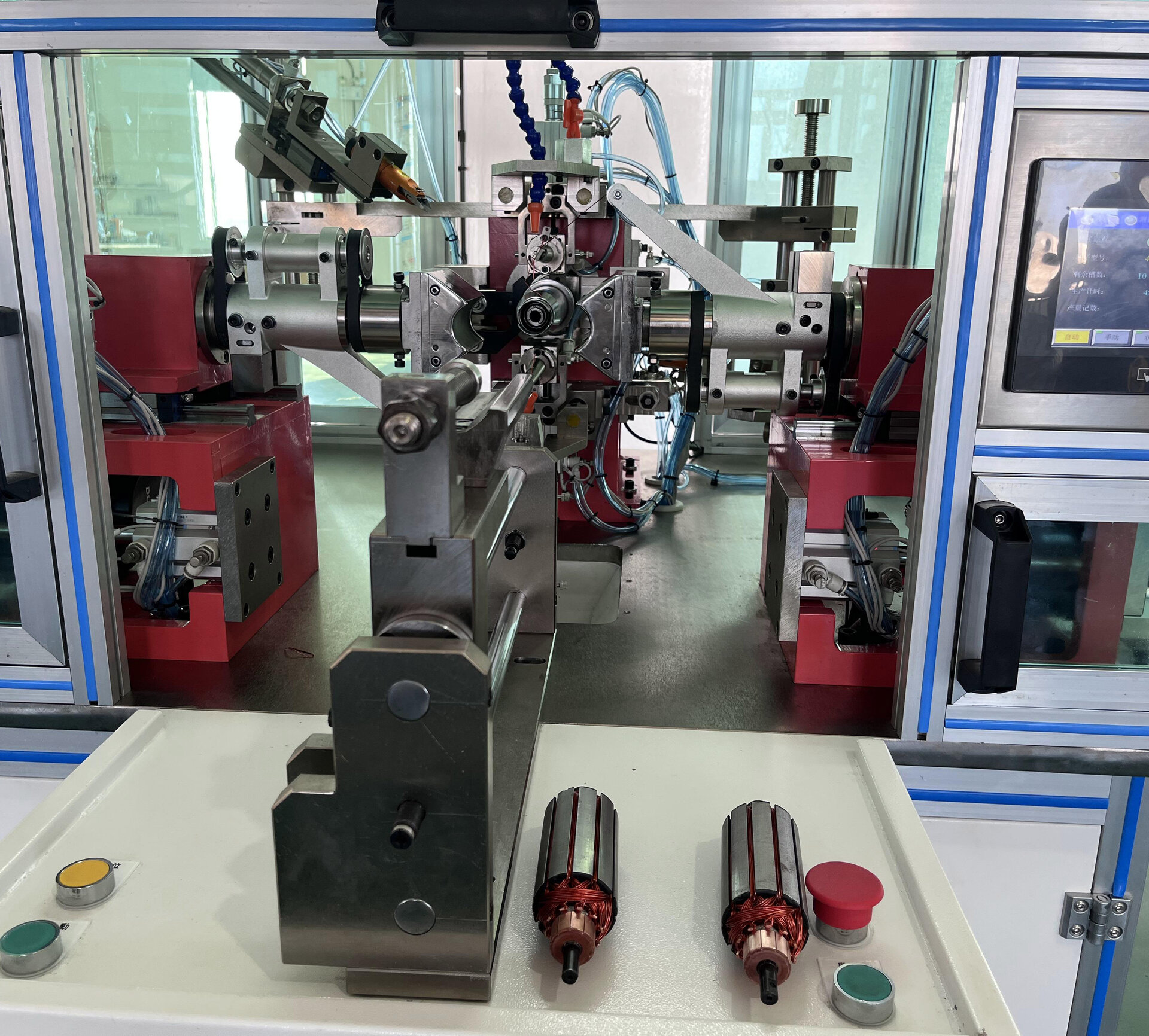

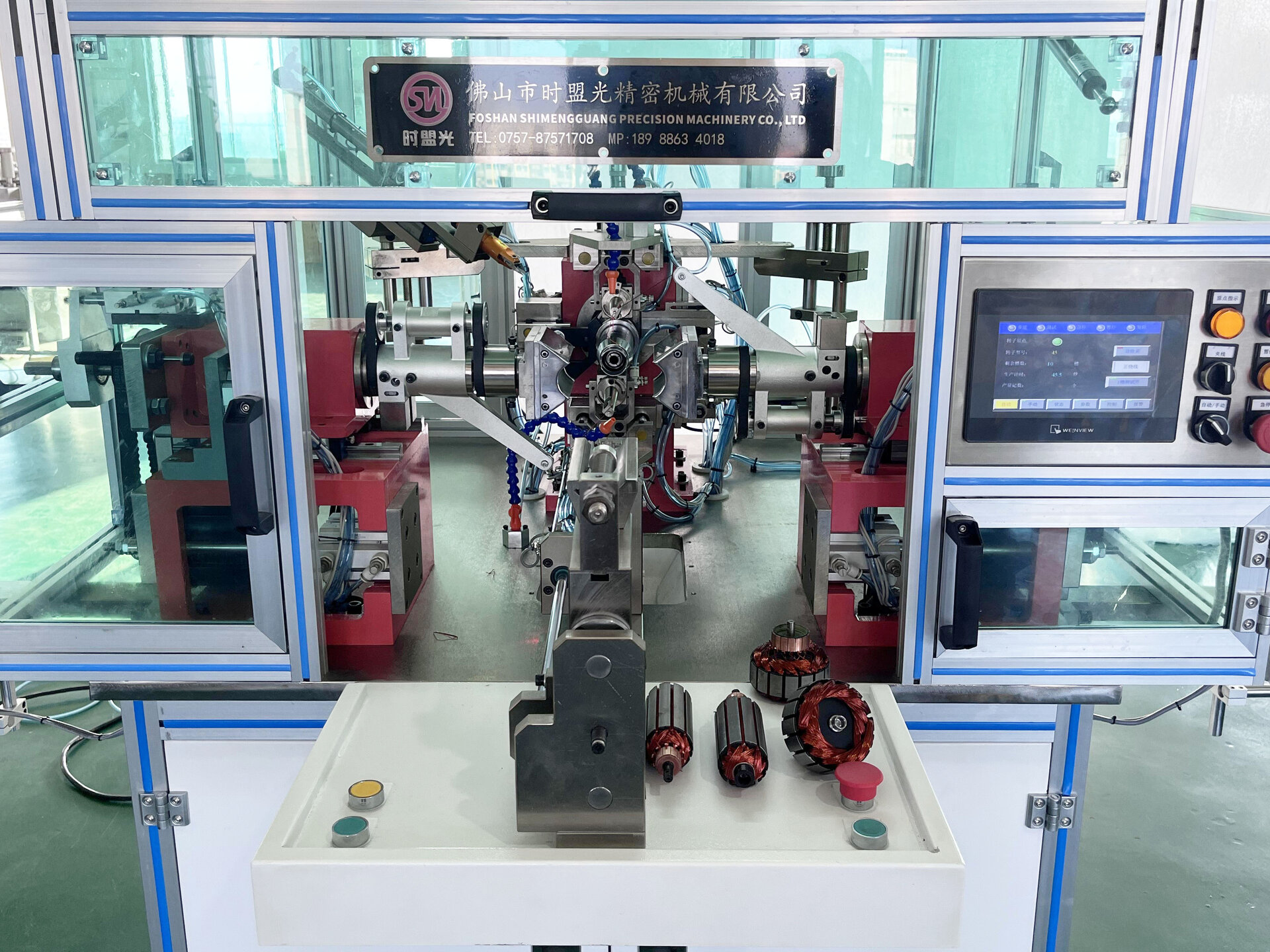

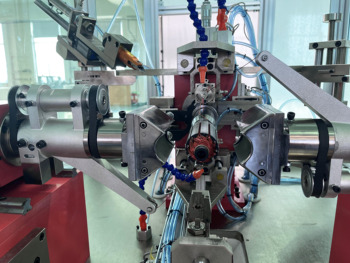

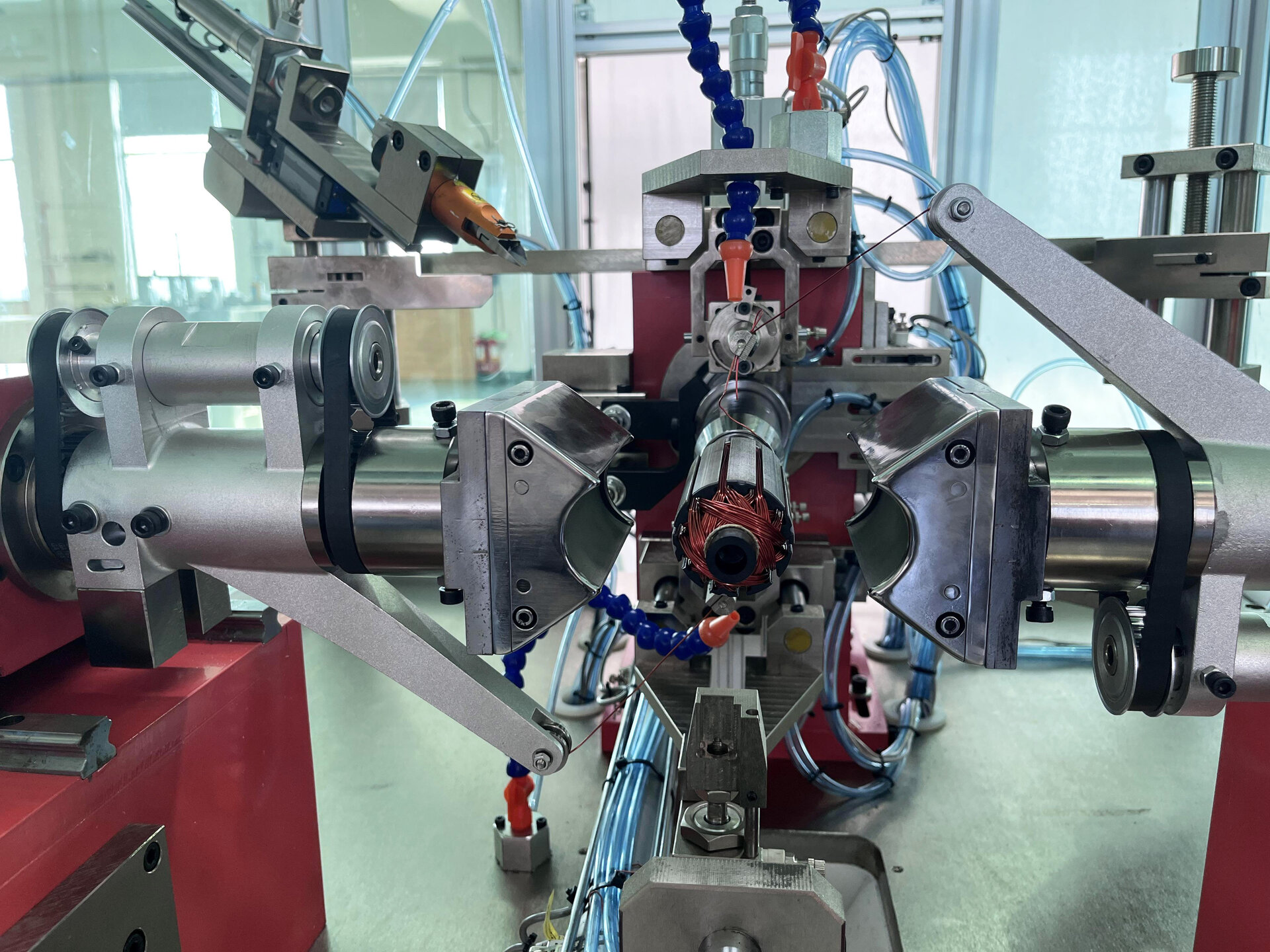

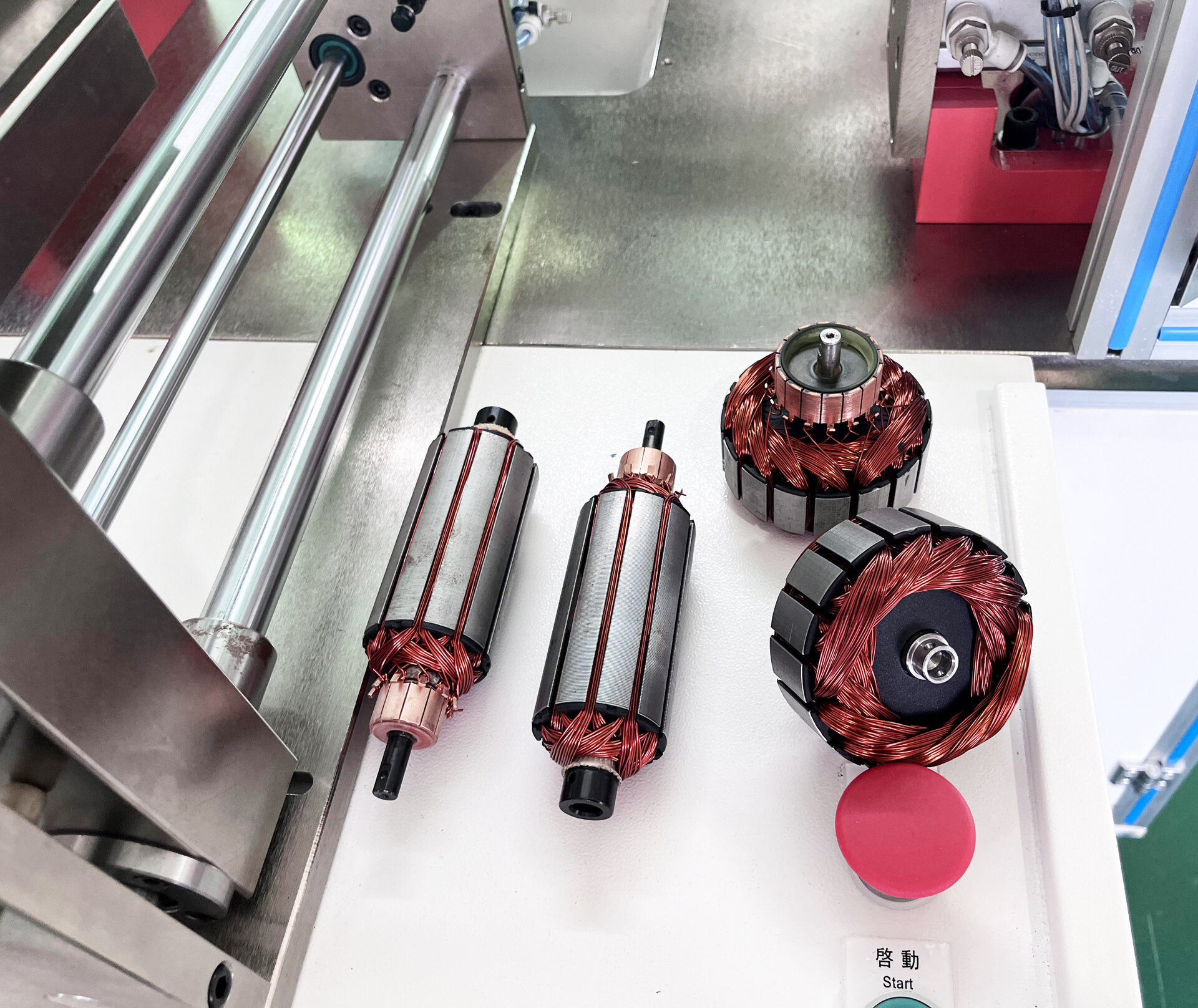

Product Range: The winding of the rotor of brush motors such as electric tools and fans. Machine Description: This model adopts an AC servo system and pneumatic components to control winding and slot rotation; Quick action startup, high accuracy, and good mute effect; Realize single hook, single slot double hook, double layer winding, and winding with different turns.
|
Suitable wire diameter
|
Ф 0.1- Ф 1.0mm
|
|
Rotor shaft length
|
≤ 280mm
|
|
Outer diameter of rotor
|
≤ 60mm
|
|
Stator stacking thickness
|
≤ 80mm
|
|
Air pressure
|
4-7kg/cm ²
|
|
Power supply
|
3-phase 380V 50Hz
|
